Raindog Hose Bib Plate - Split Rainscreen Siding Mounting Plate for Hose Bibs, 4.5 in. x 6.5 in.
*فقط قیمتگذاری آنلاین

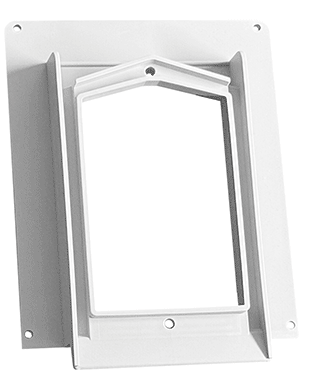

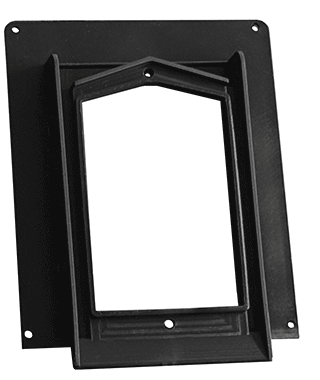

Raindog Hose Bib Plate
The Raindog Hose Bib Plate is a rainscreen mounting plate that installs around an existing hose bib, gas line or similar fixture without removing it: the plate splits and shingles together around the pipe, then seals with a built-in rainscreen channel and a double water seal system that route water away from the penetration instead of letting it pool against the wall. It is molded from copolymer UV-stabilized polypropylene, about 4.5 in. x 6.5 in. at the face, with a hole sized for 1/2 in. pipe and an easy knockout for larger sizes, plus a backing rib that keeps the mounting face from collapsing if the hose bib screws are over-tightened.
Features and Common Uses
- Split, shingled design installs over an existing hose bib, gas line or similar fixture without removing it
- Built-in rainscreen channel diverts water away from the siding surface around the penetration
- Double water seal system at the fixture penetration
- Backing rib keeps the mounting face from collapsing if hose bib screws are over-tightened
- Copolymer UV-stabilized polypropylene, average 0.09 in. wall thickness
- Hole sized for 1/2 in. pipe, with an easy knockout for larger sizes
Commonly used for:
- Retrofitting a sealed mounting surface around an existing outdoor hose bib
- New construction and re-side jobs needing a sealed surface for a hose bib or gas line penetration
- Replacing a cracked or discoloured hose bib plate on an existing installation
Specifications
| Brand | Raindog |
|---|---|
| Product Line | Hose Bib Plate (Mounting Plate) |
| Material | Copolymer UV-stabilized polypropylene |
| Face Size | approx. 4.5 in. x 6.5 in. |
| Wall Thickness | average 0.09 in. |
| Hole / Knockout | Sized for 1/2 in. pipe, easy knockout for larger sizes |
| Design | Split, shingled halves install over an existing fixture without removal |
| Reinforcement | Backing rib resists mounting-face collapse from over-tightened screws |
| Water Management | Double water seal system with rainscreen channel |
| Colours | Black, White |
Water-management performance is based on Raindog's own independent laboratory testing of its mounting plate line, which reported minimal leakage against competing designs; the surrounding siding, flashing and fixture installation still control overall performance at the wall. Source: Raindog Component Lab Test Results (PDF).
Frequently Asked Questions
Can I install this without removing my existing hose bib?
Yes. The plate splits and shingles together around the pipe, so it installs over an existing hose bib or gas line without disconnecting it.
Is this the same as a hose bib mounting plate or split plate?
Yes. Raindog also calls it a Hose Bib Plate; it is the same category of product as a split hose bib mounting plate.
What keeps the mounting face from cracking when I tighten the hose bib screws?
A backing rib molded into the plate resists collapse from over-tightened hose bib mounting screws.
