Raindog Light Plate - Rainscreen Siding Mounting Plate for Outdoor Light Fixtures, 7 in. x 7 in.
*فقط قیمتگذاری آنلاین

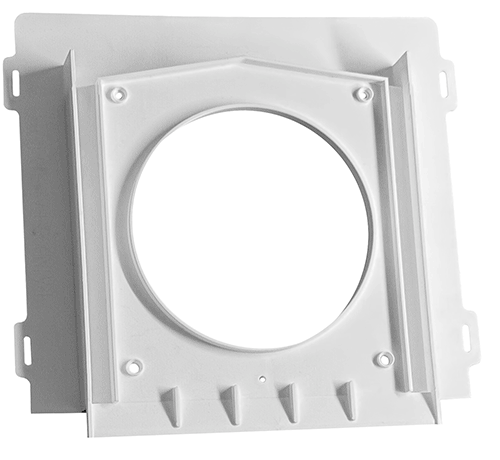

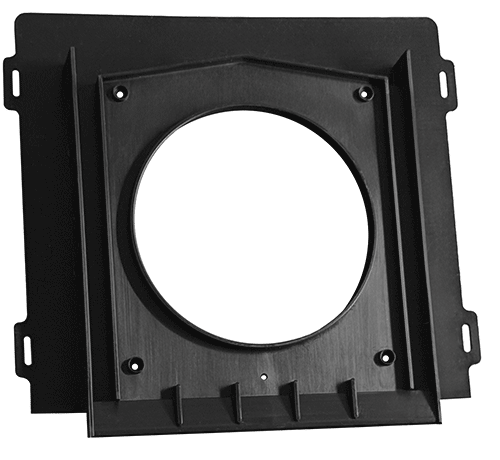

Raindog Light Plate
The Raindog Light Plate is a rainscreen mounting plate that sits behind an exterior light fixture where it penetrates the siding, using a built-in rainscreen channel and a double water seal system to route water away from the fixture opening instead of letting it pool against the wall. It is molded from copolymer UV-stabilized polypropylene, about 7 in. x 7 in. at the face, and fits an industry-standard 4 in. receptacle or electrical box.
Features and Common Uses
- Built-in rainscreen channel diverts water away from the siding surface around the fixture opening
- Double water seal system at the fixture and receptacle penetration
- Copolymer UV-stabilized polypropylene, average 0.09 in. wall thickness
- Fits an industry-standard 4 in. receptacle or electrical box
- Approximately 7 in. x 7 in. face size
Commonly used for:
- Exterior wall light fixtures mounted through vinyl or fiber cement siding
- New construction and re-side jobs needing a standoff mounting surface for a wall light
- Replacing a cracked, faded or discoloured mounting block on an existing fixture
Specifications
| Brand | Raindog |
|---|---|
| Product Line | Light Plate (Mounting Plate) |
| Material | Copolymer UV-stabilized polypropylene |
| Face Size | approx. 7 in. x 7 in. |
| Wall Thickness | average 0.09 in. |
| Receptacle Compatibility | Industry-standard 4 in. receptacle/electrical box |
| Water Management | Double water seal system with rainscreen channel |
| Colours Available (Full Line) | White, Black, Khaki, Storm, Wicker, Pebble |
| Colours Stocked | Black, White |
Water-management performance is based on Raindog's own independent laboratory testing of its mounting plate line, which reported minimal leakage against competing designs; the surrounding siding, flashing and fixture installation still control overall performance at the wall. Source: Raindog Component Lab Test Results (PDF).
Colours
Raindog Light Plate ships in six colours: White, Black, Khaki, Storm, Wicker and Pebble. Griff stocks Black and White; the other four are special order.
Frequently Asked Questions
Is this the same thing as a light block or electrical mounting block?
Yes. Raindog calls it a Light Plate, also listed as a Raindog Light Mounting Plate; it is the same category of product as a siding light block or outdoor light fixture mounting block.
What size electrical box does it fit?
A standard 4 in. receptacle or electrical box.
Can I get it in a colour other than Black or White?
Yes, as a special order in Khaki, Storm, Wicker or Pebble. Contact us for lead time and pricing.
