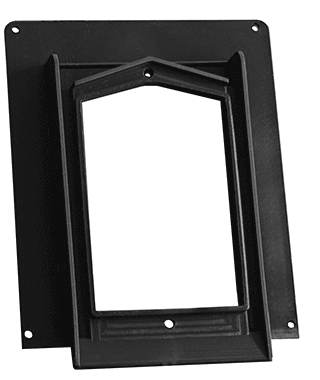

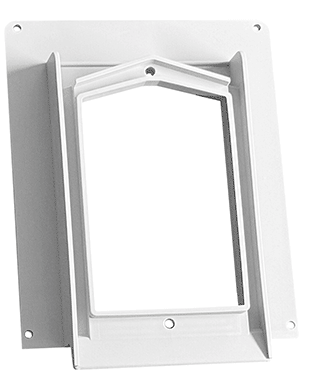

Raindog Plug Plate, Color Match
The Raindog Plug Plate is a weatherproof mounting plate for an outdoor electrical outlet, built into the wall's water-resistive barrier and siding assembly rather than surface-mounted on top of it. It ties into Raindog's rainscreen system, channeling water down and away from the receptacle and the siding behind it, and is sized for an industry-standard 2.25 in. x 3.5 in. outlet box.
Moulded from copolymer, UV-stabilized polypropylene with a double water seal at the box opening, it is part of the same Raindog mounting-plate line as their Light Plate and Hose Bib products, so an elevation with multiple exterior penetrations can be finished with matching hardware.
Features and Common Uses
- Weatherproof mounting plate for a single outdoor electrical outlet, part of Raindog's rainscreen mounting-plate line alongside their Light Plate and Hose Bib products
- Double water seal system at the receptacle opening
- Integrated rainscreen channel that directs water down and away from the siding face instead of trapping it behind the plate
- Moulded copolymer, UV-stabilized polypropylene
- Fits an industry-standard 2.25 in. x 3.5 in. electrical receptacle box
Commonly used for:
- New construction or re-side jobs where an exterior outlet penetrates the siding
- Replacing a gasketed outlet cover that has failed and let water track behind the siding
- Matching Raindog Light Plate and Hose Bib installations on the same elevation
Specifications
| Brand | Raindog |
|---|---|
| Product Line | Plug Plate |
| Material | Copolymer, UV-stabilized polypropylene |
| Face Size | approx. 4.5 in. x 6.5 in. |
| Wall Thickness | 0.09 in. average |
| Receptacle Opening | 2.25 in. x 3.5 in. (industry standard) |
| Water Sealing | Double water seal system with integrated rainscreen channel |
| Colour | Black or White |
Water-tightness is validated by independent lab testing Raindog commissioned on its rainscreen mounting-plate line, which includes the Plug Plate; Raindog reports little or no measured leakage against comparable covers. Confirm compatibility with your specific siding profile and wall assembly before ordering. Source: Raindog Component Test Results (PDF).
Color Match
The Plug Plate is made in six colours to match common siding profiles: Black, White, Khaki, Storm, Wicker and Pebble. This listing carries Black and White; contact us to special-order Khaki, Storm, Wicker or Pebble.
How to Install
- Mount the plate to the wall sheathing around the electrical outlet box before the siding course at that height goes on, so it sits inside the drainage plane rather than on top of the finished siding.
- Lap the water-resistive barrier over the plate's top flange and tuck it behind the bottom flange, the same shingle-lap order used at any other wall penetration, so water sheds down and over the plate rather than behind it.
- Fasten through the mounting holes into solid sheathing or framing, with corrosion-resistant fasteners suited to the siding install already in use on the wall.
- Have the electrician terminate the receptacle in the box behind the cutout once the plate and surrounding siding are in place, then seat the cover over the finished receptacle.
- Confirm the outlet box depth and rough opening against the plate's 2.25 in. x 3.5 in. cutout before ordering; the plate does not adapt to a nonstandard box.
Frequently Asked Questions
Is this the same thing as an outdoor outlet cover?
Same job, different design. Raindog's own term for it is a mounting plate; instead of sitting on the wall surface like a standard weatherproof cover, it ties into the wall's water-resistive barrier so wind-driven rain sheds around the outlet rather than getting trapped behind the siding.
What size receptacle does it fit?
An industry-standard 2.25 in. x 3.5 in. outlet box, the size used on nearly every exterior duplex receptacle.
What colours are available?
Six, under Raindog's Color Match program: Black, White, Khaki, Storm, Wicker and Pebble. We stock Black and White; contact us for the other four.
Where does this install relative to the siding?
Behind it. The plate mounts to the sheathing and water-resistive barrier before that course of siding goes on, not as a surface-mounted cover added afterward.
Is mounting hardware included?
Raindog does not publish a hardware list for the Plug Plate. Confirm what ships in the box with your rep before ordering if you need it to include fasteners.
