Simpson Strong-Tie A66 12-Gauge Galvanized Angle, 5-7/8 in. x 5-7/8 in.
*فقط قیمتگذاری آنلاین

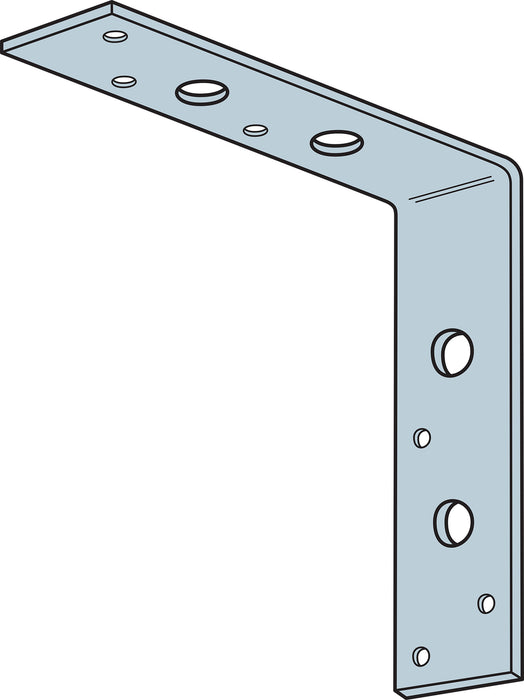

A66 12-Gauge Angle, 5-7/8 in. x 5-7/8 in.
The A66 is a heavy 12-gauge right angle with two 5-7/8 in. legs, 1-1/2 in. wide, that bolts wood members together with 3/8 in. bolts. It is the bolted big brother of the nailed A34 and A35 framing angles.
G90 galvanized for dry, interior use. For treated lumber or exterior exposure, ask us about a ZMAX or stainless option.
Features and Common Uses
- 12-gauge steel right angle, 5-7/8 in. x 5-7/8 in. legs, 1-1/2 in. wide
- Pre-punched for 3/8 in. diameter bolts
- G90 zinc galvanized finish
Commonly used for:
- Bolted post, beam and blocking connections
- Shelving and equipment supports framed in wood
- General reinforcing where a nailed angle is too light
Specifications
| Brand | Simpson Strong-Tie |
|---|---|
| Model | A66 |
| Gauge | 12 ga. |
| Leg length (W1 x W2) | 5-7/8 in. x 5-7/8 in. |
| Width (L) | 1-1/2 in. |
| Fasteners | 3/8 in. diameter bolts |
| Finish | Zinc galvanized, G90 |
Dimensions and fastener size are from Simpson's catalogue for the A angle series. Allowable loads depend on bolt count and lumber species; confirm them for your connection. Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, p. 314 (PDF).

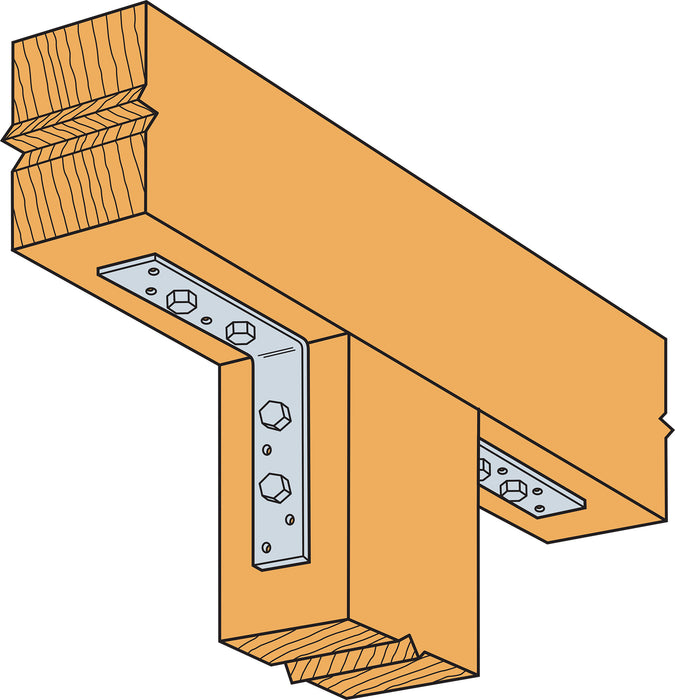

How to Install
- Hold the angle in place and drill 3/8 in. bolt holes through the wood at the pre-punched holes.
- Install 3/8 in. bolts with washers against the wood and tighten snug.
- Use all specified fasteners to reach the published loads.
Full installation notes and load tables: Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, p. 314 (PDF).
Frequently Asked Questions
Can I nail it instead of bolting?
The A66 is designed for 3/8 in. bolts. For a nailed connection, use an A34 or A35 framing angle.
Can I use it on a pressure-treated deck?
Not this finish. G90 galvanizing is for dry, interior framing. For preservative-treated lumber or exterior exposure, Simpson calls for ZMAX, hot-dip galvanized or stainless steel connectors and matching fasteners. Ask us about the ZMAX or stainless version.
