Simpson Strong-Tie HB7.12/9.5 Heavy Top-Flange Beam Hanger, 7 in. x 9-1/2 in. beam
*فقط قیمتگذاری آنلاین

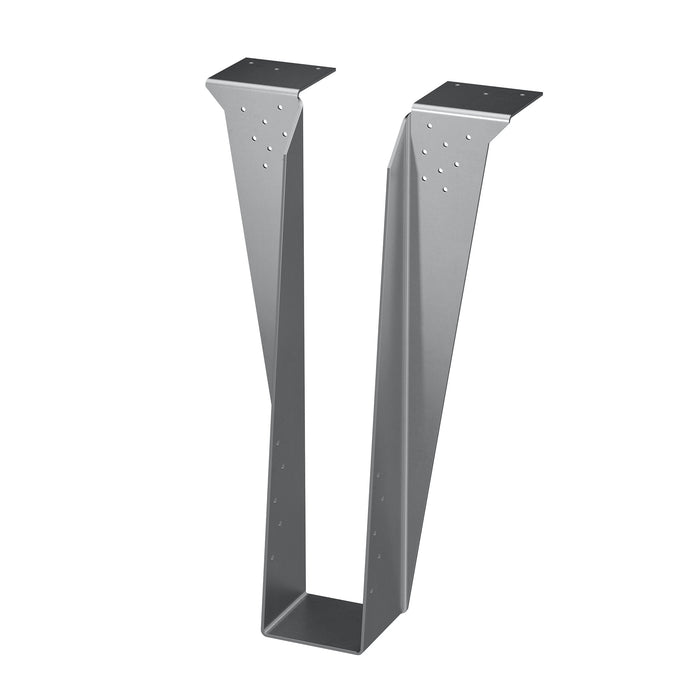

HB7.12/9.5 Heavy Top-Flange Beam Hanger, 7 in. x 9-1/2 in. beam
The HB7.12/9.5 is a 10-gauge heavy beam hanger for a 7 in. x 9-1/2 in. beam. The 3 in. top flange bears on the header and the tall joist flanges carry high loads from PSL, glulam and multi-ply LVL beams.
Available hot-dip galvanized, sloped or skewed by special order. Contact us for a quote.
Features and Common Uses
- 10-gauge steel, Zinc galvanized, G90 finish
- Top-flange bearing plus face and joist nailing for high loads
- Acceptable for weld-on applications to steel

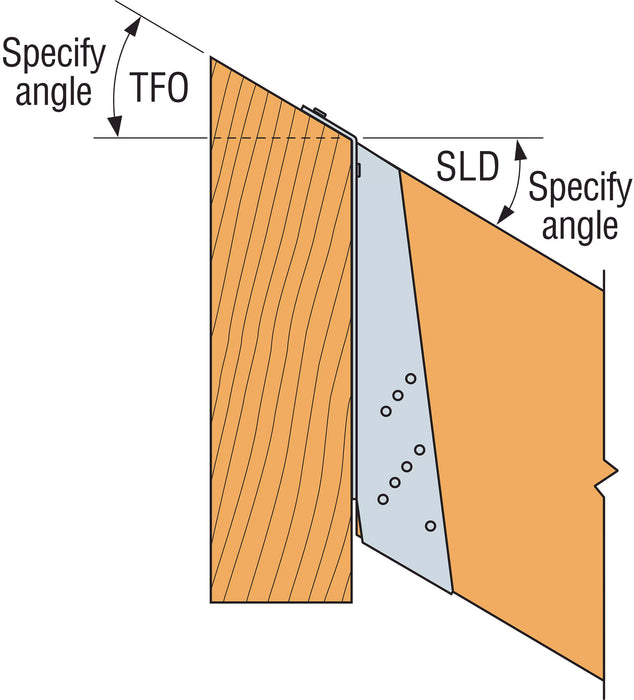

- Sloped and skewed versions available by special order
Commonly used for:
- PSL and glulam beams hung from a girder
- Multi-ply LVL beams carrying floor or roof loads
- Heavy beam-to-beam connections
Specifications
| Brand | Simpson Strong-Tie |
|---|---|
| Model | HB7.12/9.5 |
| Carried member | 7 in. x 9-1/2 in. beam |
| Gauge | 10 ga. |
| Width (W) | 7-1/8 in. |
| Height (H) | 9-1/2 in. |
| Seat depth (B) | 3-1/2 in. |
| Top flange (TF) | 3 in. |
| Header fasteners | (22) 0.162 in. x 3-1/2 in. (top and face) |
| Joist fasteners | (10) 0.162 in. x 3-1/2 in. |
| Finish | Zinc galvanized, G90 |
Dimensions, fastener schedule and allowable loads are from Simpson's catalogue table for the HB7.12/9.5. Loads vary by lumber species, load duration and nailing option; confirm the value for your design before install. Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, pp. 186-188 (PDF).
How to Install
- Hook the top flange over the header so it bears fully.
- Fill the top and face holes with 0.162 in. x 3-1/2 in. nails (22 total).
- Fill the 10 joist holes with 0.162 in. x 3-1/2 in. nails.
- On steel, a 2 in. fillet weld each side of each top flange replaces the top and face nailing.
Full installation notes, fastener substitutions and load tables: Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, pp. 186-188 (PDF).
Frequently Asked Questions
Which nails do I need?
Header: (22) 0.162 in. x 3-1/2 in. (top and face). Joist: (10) 0.162 in. x 3-1/2 in. Use the exact sizes Simpson specifies; a shorter or thinner nail lowers the allowable load. Simpson's catalogue table lists the load for each nailing option.
Can I use it on a pressure-treated deck?
Not this finish. G90 galvanizing is for dry, interior framing. For preservative-treated lumber or exterior exposure, Simpson calls for ZMAX, hot-dip galvanized or stainless steel connectors and matching fasteners. Ask us about the ZMAX or stainless version.
