Simpson Strong-Tie HGUS28-2 Heavy Girder Hanger with Double-Shear Nailing, double 2x8
*فقط قیمتگذاری آنلاین

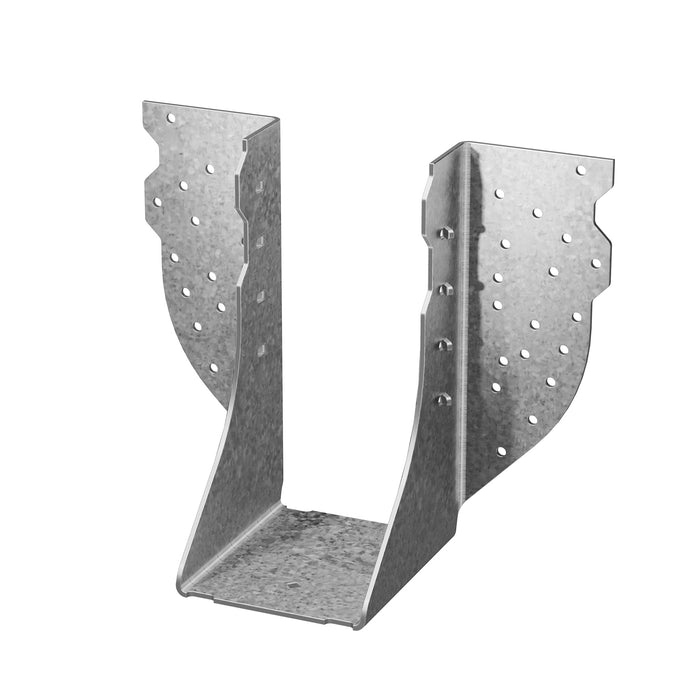

HGUS28-2 Heavy Girder Hanger with Double-Shear Nailing, double 2x8
The HGUS28-2 is a 12-gauge heavy girder hanger for a double 2x8. It uses double-shear nailing, with joist nails driven through the joist into the header, for the high loads of girders and doubled members.
Not for I-joists, nailers or welded steel. For those, ask us for a rated alternative.
Features and Common Uses
- 12-gauge steel, Zinc galvanized, G90 finish
- Double-shear nailing for girder-level loads
- Can be installed after the beam is secured in place
- Tested, load rated and code listed by Simpson Strong-Tie
Commonly used for:
- Girder trusses and doubled joists carrying point loads
- Heavy stair and floor opening headers
Specifications
| Brand | Simpson Strong-Tie |
|---|---|
| Model | HGUS28-2 |
| Carried member | double 2x8 |
| Gauge | 12 ga. |

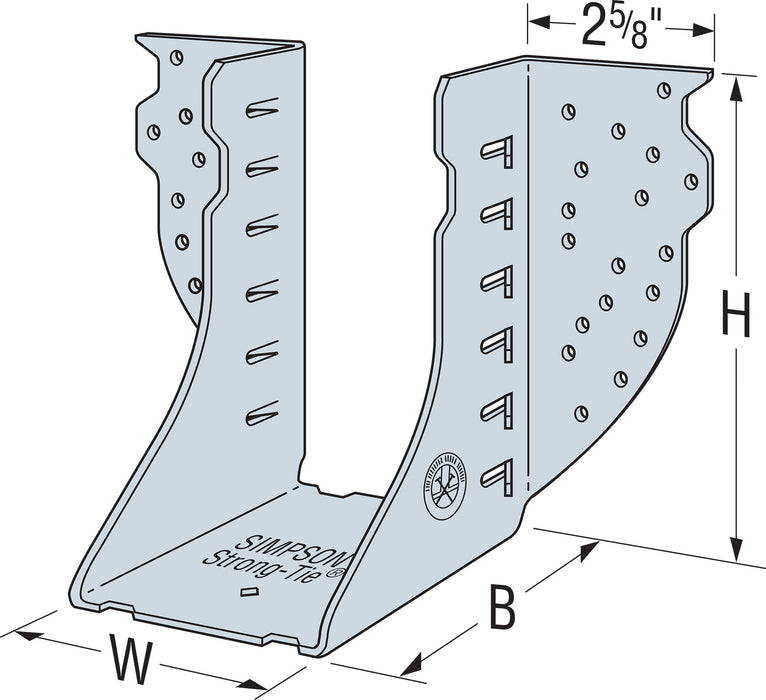

| Width (W) | 3-5/16 in. |
| Height (H) | 7-3/16 in. |
| Seat depth (B) | 4 in. |
| Header fasteners | 16d common (0.162 in. x 3-1/2 in.) |
| Joist fasteners | 16d common (0.162 in. x 3-1/2 in.), double-shear |
| Finish | Zinc galvanized, G90 |
Dimensions, fastener schedule and allowable loads are from Simpson's catalogue table for the HGUS28-2. Loads vary by lumber species, load duration and nailing option; confirm the value for your design before install. Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, pp. 112-113 (PDF).
How to Install
- Set the hanger on the header face and fill every header hole with 16d common nails.
- Seat the doubled member tight to the header.
- Drive the joist nails at an angle through the joist into the header to reach the table loads.
Full installation notes, fastener substitutions and load tables: Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, pp. 112-113 (PDF).
Frequently Asked Questions
Which nails do I need?
Header: 16d common (0.162 in. x 3-1/2 in.). Joist: 16d common (0.162 in. x 3-1/2 in.), double-shear. Use the exact sizes Simpson specifies; a shorter or thinner nail lowers the allowable load. Simpson's catalogue table lists the load for each nailing option.
Can I use it on I-joists?
No. Simpson does not permit double-shear hangers with I-joists.
Can I use it on a pressure-treated deck?
Not this finish. G90 galvanizing is for dry, interior framing. For preservative-treated lumber or exterior exposure, Simpson calls for ZMAX, hot-dip galvanized or stainless steel connectors and matching fasteners. Ask us about the ZMAX or stainless version.
