Simpson Strong-Tie SUR1.81/14 45-Degree Right-Skewed Joist Hanger, 1-3/4 in. x 14 in.
*فقط قیمتگذاری آنلاین

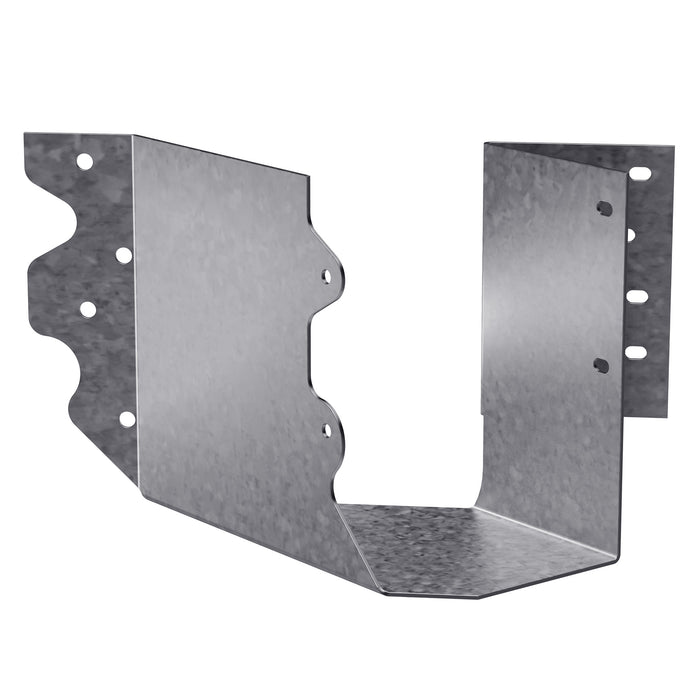

SUR1.81/14 Right-Skewed Joist Hanger, 1-3/4 in. x 14 in.
The SUR1.81/14 is a right-skewed U-shaped hanger for a 1-3/4 in. x 14 in. joist meeting the header at 45 degrees. Obround nail holes on the acute side let you drive nails parallel to the joist instead of fighting the angle.
Skewed right only. For the opposite direction you need the SUL1.81/14; these hangers cannot be bent to change direction. They accommodate a 40 to 50 degree skew.
Features and Common Uses
- 16-gauge steel, Zinc galvanized, G90 finish
- Pre-skewed to 45 degrees, accepts joists from 40 to 50 degrees
- Obround holes on the acute side let nails drive parallel to the joist
- Joist end may be square cut or bevel cut
- Tested, load rated and code listed by Simpson Strong-Tie
Commonly used for:
- Skewed LVL and I-joist framing at hips and angled walls
- Bay window floor framing
Specifications
| Brand | Simpson Strong-Tie |
|---|---|
| Model | SUR1.81/14 |
| Carried member | 1-3/4 in. x 14 in. |
| Gauge | 16 ga. |
| Width (W) | 1-13/16 in. |
| Height (H) | 13-3/4 in. |
| Seat depth (B) | 3 in. |
| Header fasteners | (20) 0.162 in. x 3-1/2 in. |
| Joist fasteners | (2) 0.148 in. x 1-1/2 in. |
| Finish | Zinc galvanized, G90 |
Dimensions, fastener schedule and allowable loads are from Simpson's catalogue table for the SUR1.81/14. Loads vary by lumber species, load duration and nailing option; confirm the value for your design before install. Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, pp. 174-175 (PDF).
How to Install
- Check the skew direction against Simpson's illustration before you nail: the SUR skews right and the SUL skews left.
- Fill all round and obround header holes with the specified nails.
- The joist end can be square or bevel cut; push it tight into the seat.
- Fill the joist holes. Triangle holes, where present, add uplift capacity.
Full installation notes, fastener substitutions and load tables: Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, pp. 174-175 (PDF).
Frequently Asked Questions
Which nails do I need?
Header: (20) 0.162 in. x 3-1/2 in. Joist: (2) 0.148 in. x 1-1/2 in. Use the exact sizes Simpson specifies; a shorter or thinner nail lowers the allowable load. Simpson's catalogue table lists the load for each nailing option.
Can I bend it to the other side?
No. Simpson says these hangers cannot be modified. Order the opposite-hand model instead.
Can I use it on a pressure-treated deck?
Not this finish. G90 galvanizing is for dry, interior framing. For preservative-treated lumber or exterior exposure, Simpson calls for ZMAX, hot-dip galvanized or stainless steel connectors and matching fasteners. Ask us about the ZMAX or stainless version.
