Simpson Strong-Tie Titen Turbo 1/4 in. x 2-1/4 in. Flat-Head Concrete & Masonry Screw, Blue (100 per Box)
*فقط قیمتگذاری آنلاین
Titen Turbo 1/4 in. x 2-1/4 in. Flat-Head Concrete Screw

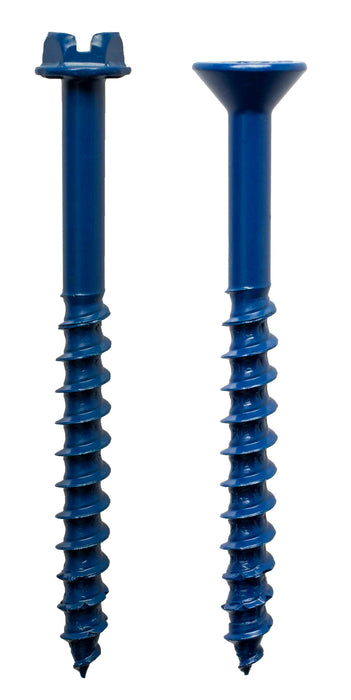

Titen Turbo is Simpson's concrete and masonry screw anchor. This is the 1/4 in. x 2-1/4 in. flat-head version with a T30 6-lobe drive, which sits flush in a countersunk fixture. Drill a 3/16 in. hole and drive it in; no plug or anchor sleeve needed.
Zinc plated with a ceramic coating for dry, interior use. It is not rated for exterior or wet exposure.
Features and Common Uses

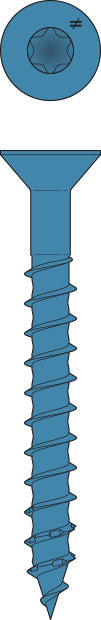

- 1/4 in. x 2-1/4 in. flat head with T30 6-lobe drive
- A channel between the threads clears drilling dust so the screw doesn't bind
- Installs with a standard ANSI 3/16 in. bit
- 100 per box
Commonly used for:
- Electrical boxes, conduit and light fixtures
- Furring strips and thresholds on basement slabs
- Shelving and handrails on concrete or block
Specifications
| Brand | Simpson Strong-Tie |
|---|---|
| Model | TNT25214TF |
| Diameter | 1/4 in. |
| Length | 2-1/4 in. |
| Head | Flat head, T30 6-lobe |
| Drill bit | 3/16 in. |
| Material | Carbon steel |
| Finish | Zinc plated with ceramic coating (blue) |
| Pack | 100 |
Sizes and drill bit are from Simpson's product data for the TNT25214TF. Embedment and loads vary by base material; confirm them from the anchoring catalogue. Source: Simpson Strong-Tie Anchoring and Fastening Systems for Concrete and Masonry Catalog C-A-2023, pp. 126-133 (PDF).
How to Install
- Drill a 3/16 in. hole to the embedment depth plus 1/2 in. for dust.
- Blowing the hole clean is optional but helps.
- Drive the screw through the fixture until the head is flush. Do not over-torque.
Full installation notes and load tables: Source: Simpson Strong-Tie Anchoring and Fastening Systems for Concrete and Masonry Catalog C-A-2023, pp. 126-133 (PDF).
Frequently Asked Questions
What bit size?
3/16 in. carbide, standard ANSI tolerance.
Can I use it outside?
No. The zinc and ceramic coating is for dry, interior conditions.
