Diablo Diamond Segmented Turbo Masonry Cut-Off Blade for Concrete, Brick and Block
*仅限线上定价
Diablo Diamond Segmented Turbo Masonry Cut-Off Blade
Diablo's turbo blade adds SPEED-Edge slots to a segmented rim. Diablo says the slots reduce vibration and give up to 30% faster cuts than standard segmented diamond discs, and that the segments are 60% taller, for up to 4X longer life. It cuts concrete, concrete with rebar, block, brick, marble, granite, pipe and ductile iron.
Five sizes. The 4 in., 4-1/2 in. and 5 in. blades fit 7/8 in., 20 mm and 5/8 in. arbors and include 20 mm and 5/8 in. bushings. The 6 in. and 7 in. fit DM 7/8 in. and 5/8 in. arbors and include a 5/8 in. bushing. Diablo lists the 4 in. to 5 in. for angle grinders, the 6 in. for circular saws, cordless circular saws and angle grinders, and the 7 in. for angle grinders and circular saws. Every size cuts wet or dry.
Check the speed rating. Maximum RPM falls from 15,250 at 4 in. to 8,450 at 7 in., so a tool that suits the small blade can over-speed the large one.
Features and Common Uses
- SPEED-Edge slot design reduces vibration and gives up to 30% faster cuts than standard segmented diamond discs, by Diablo's rating
- 60% taller diamond segments on an ultra-durable bond, for up to 4X longer life, by Diablo's rating
- Diamond layout keeps diamond exposed for steady cutting at high speed
- Hardened disc body absorbs vibration and resists impact in hard materials
- Cuts wet or dry
- Maximum speed 15,250 RPM at 4 in. down to 8,450 RPM at 7 in.
Commonly used for:
- Concrete, including concrete with rebar
- Brick, block and cinder block
- Pipe and ductile iron
Specifications
| Size | Model | Arbor | Bushings included | Kerf | Max RPM |
|---|---|---|---|---|---|

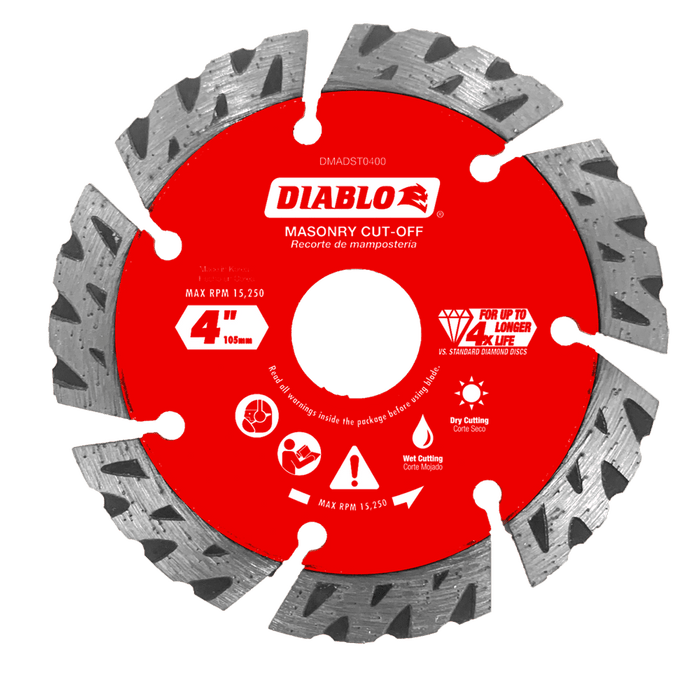

| 4 in. | DMADST0400 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 2.4 mm | 15,250 |

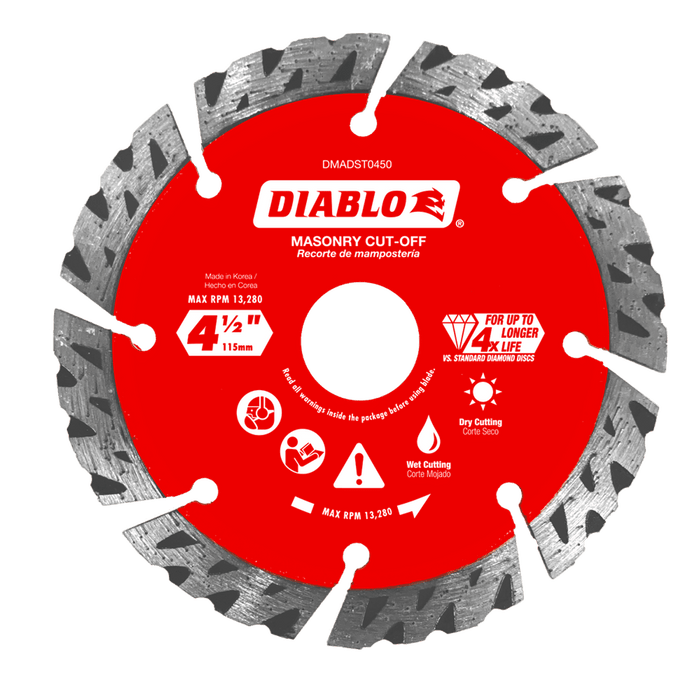

| 4-1/2 in. | DMADST0450 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 2.4 mm | 13,280 |

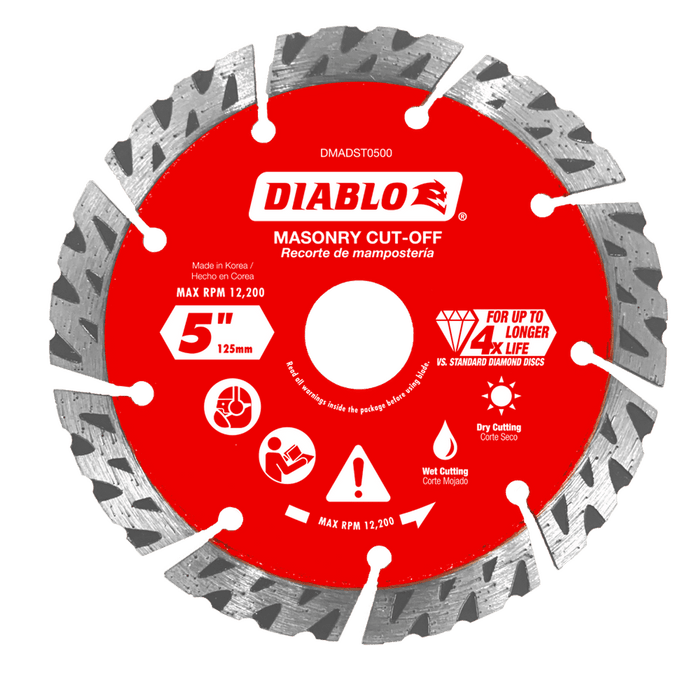

| 5 in. | DMADST0500 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 2.4 mm | 12,200 |

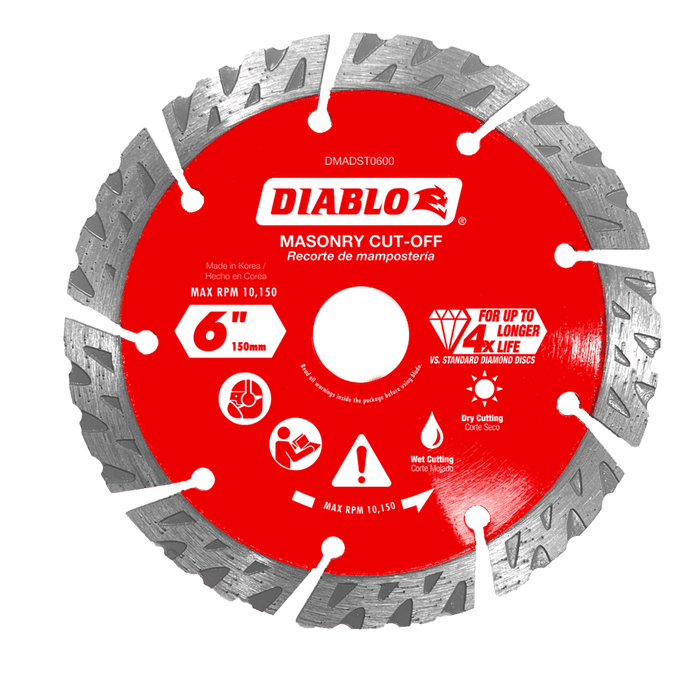

| 6 in. | DMADST0600 | DM 7/8 in., 5/8 in. | 5/8 in. | 2.4 mm | 10,150 |
| 7 in. | DMADST0700 | DM 7/8 in., 5/8 in. | 5/8 in. | 2.6 mm | 8,450 |
Arbor, kerf and maximum speed are from Diablo's product pages, one page per size. Diablo's 7 in. page carries the standard segmented wording (up to 2X longer life) instead of the turbo figures quoted for the 4 in. to 6 in. sizes. Never run a blade above its maximum RPM. Source: Diablo segmented turbo blade product pages (diablotools.com).
Frequently Asked Questions
Turbo or standard segmented?
Turbo adds the SPEED-Edge slots and taller segments, and Diablo claims up to 30% faster cuts and up to 4X longer life for the 4 in. to 6 in. sizes. The standard segmented blade is rated for up to 2X longer life.
Can I cut wet?
Yes. Diablo rates every size of this blade for wet and dry cutting.
Does it cut ductile iron?
Yes. Ductile iron is listed for the turbo blade, in addition to concrete, block, brick, marble, granite and pipe.
Which bushing do I need?
The 4 in., 4-1/2 in. and 5 in. blades include 20 mm and 5/8 in. bushings. The 6 in. and 7 in. blades fit DM 7/8 in. and 5/8 in. arbors and include one 5/8 in. bushing.
