Diablo Concrete Demon Diamond Segmented Turbo Tuckpoint Blade for Mortar Joints
*فقط قیمتگذاری آنلاین
Diablo Concrete Demon Diamond Segmented Turbo Tuckpoint Blade
The Concrete Demon tuckpoint blade stacks two diamond blades on one arbor, separated by a precision washer, so a single pass removes a 6.1 mm wide strip of mortar. SPEED-Edge slots reduce vibration for up to 30% faster cuts than standard segmented diamond discs, and the laser-welded segments are rated for up to 2X longer life, by Diablo's figures.
Two sizes for angle grinders, 4-1/2 in. and 5 in. Both fit 7/8 in., 20 mm and 5/8 in. arbors and include 20 mm and 5/8 in. bushings. Diablo lists them for concrete, mortar, grout, brick and block.
Dry cutting only. Diablo does not rate the tuckpoint blade for wet use.
Features and Common Uses
- Integrated dual blade: two diamond blades separated by a precision washer, for fast mortar joint removal
- SPEED-Edge slot design reduces vibration and gives up to 30% faster cuts than standard segmented diamond discs, by Diablo's rating
- Laser-welded diamond segments, rated for up to 2X longer life
- Hardened disc body absorbs vibration and resists impact in hard materials
- Dry cutting only
- 20 mm and 5/8 in. bushings included
Commonly used for:
- Raking out mortar joints before repointing
- Removing grout
- Cutting concrete, brick and block
Specifications
| Size | Model | Arbor | Bushings included | Kerf | Max RPM |
|---|---|---|---|---|---|

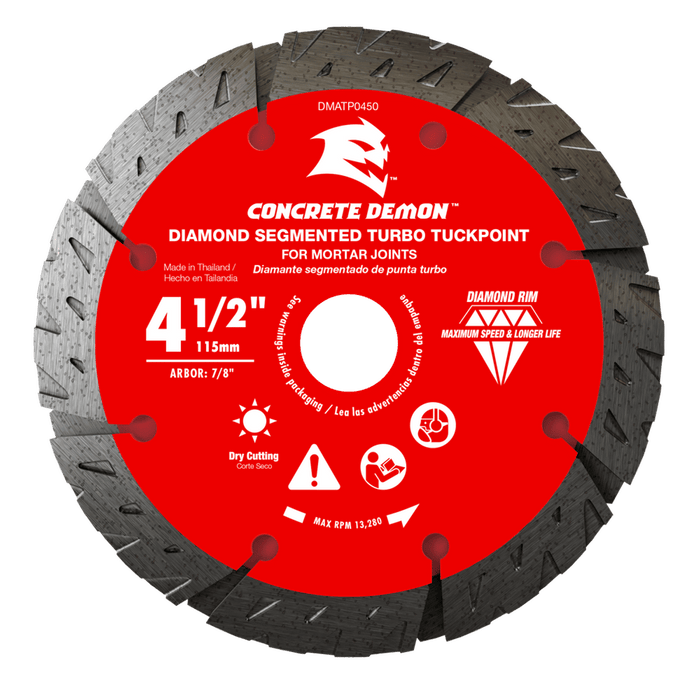

| 4-1/2 in. | DMATP0450 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 6.1 mm | 13,280 |

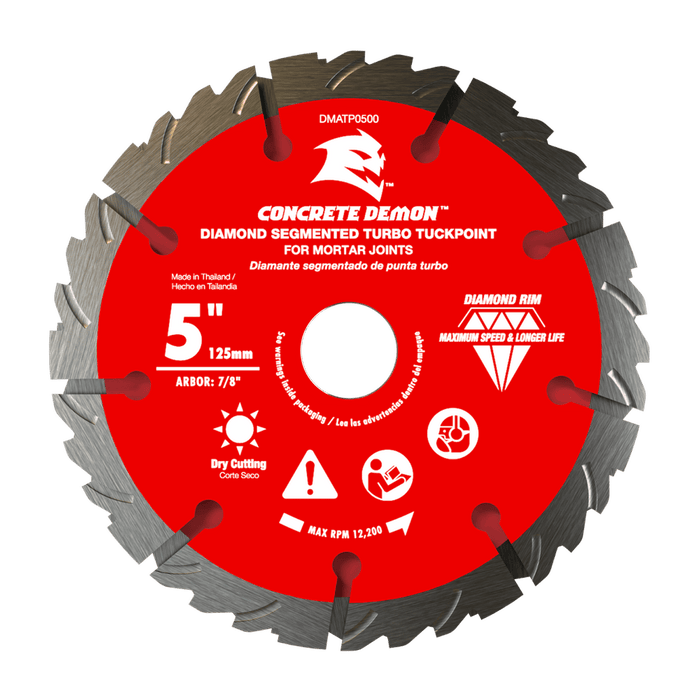

| 5 in. | DMATP0500 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 6.1 mm | 12,200 |
Arbor, kerf and maximum speed are from Diablo's product pages, one page per size. Match the arbor or bushing to your grinder, and never run a blade above its maximum RPM. Source: Diablo Concrete Demon tuckpoint blade product pages (diablotools.com).
Frequently Asked Questions
Can I use it wet?
No. Diablo lists the tuckpoint blade for dry cutting only.
How wide a joint does it cut?
The kerf is 6.1 mm, about 1/4 in., because two blades are stacked on the arbor with a washer between them.
Tuckpoint blade or segmented blade?
Tuckpoint to open mortar joints. A segmented blade to cut through concrete, brick and block.
4-1/2 in. or 5 in.?
Match your grinder. The 4-1/2 in. blade is rated to 13,280 RPM and the 5 in. to 12,200 RPM, so check the grinder's no-load speed against the rating.
