Diablo Diamond Segmented Masonry Cut-Off Blade for Concrete, Brick and Block
*فقط قیمتگذاری آنلاین

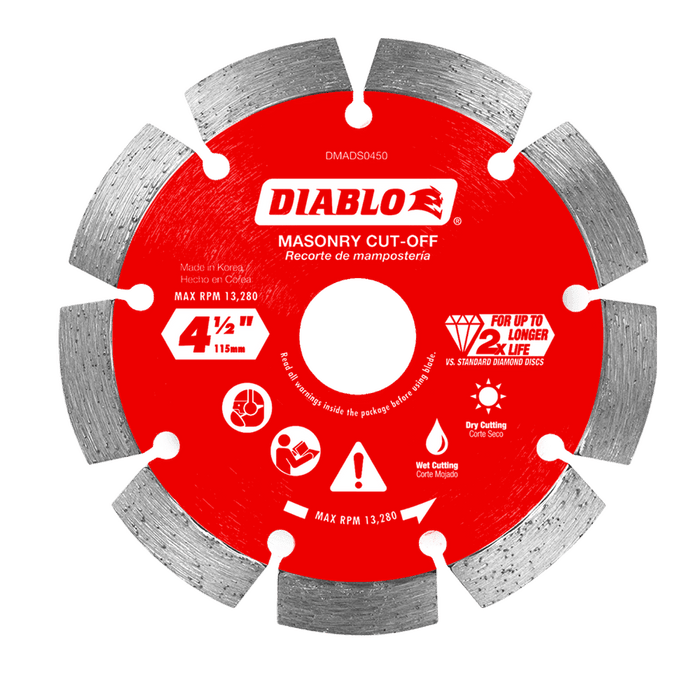

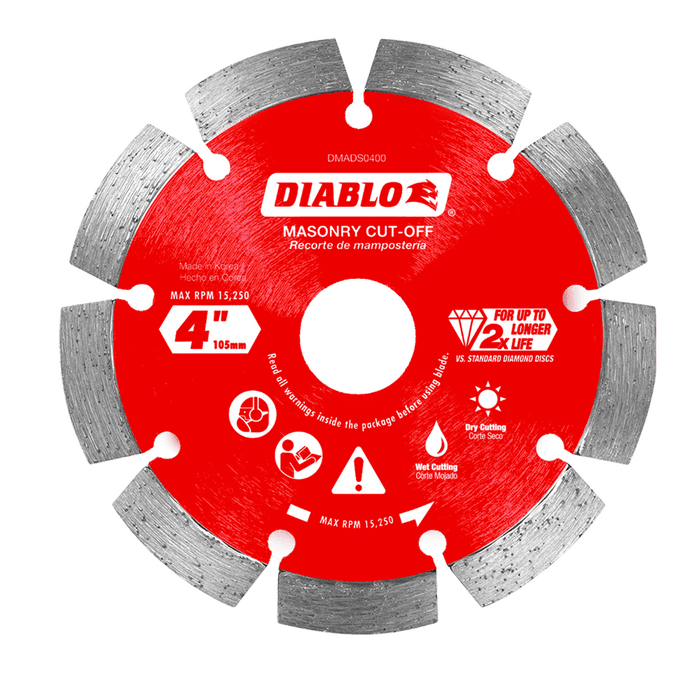

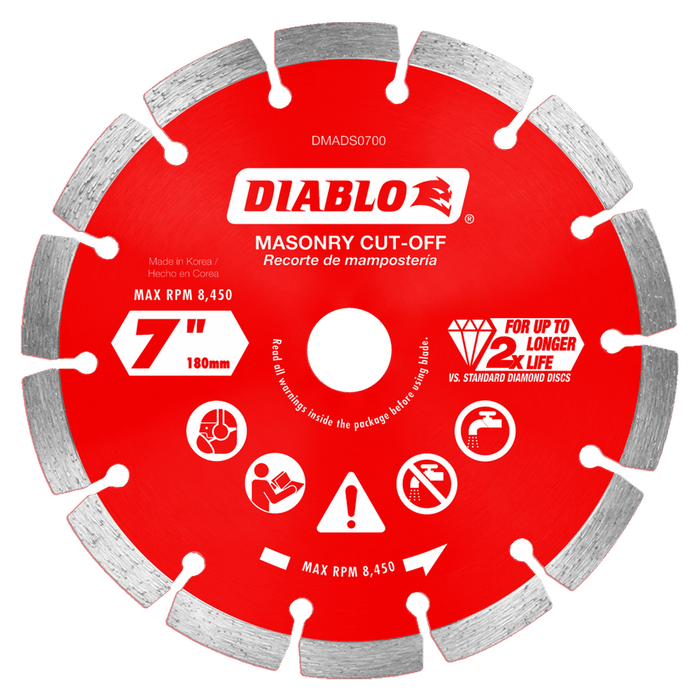

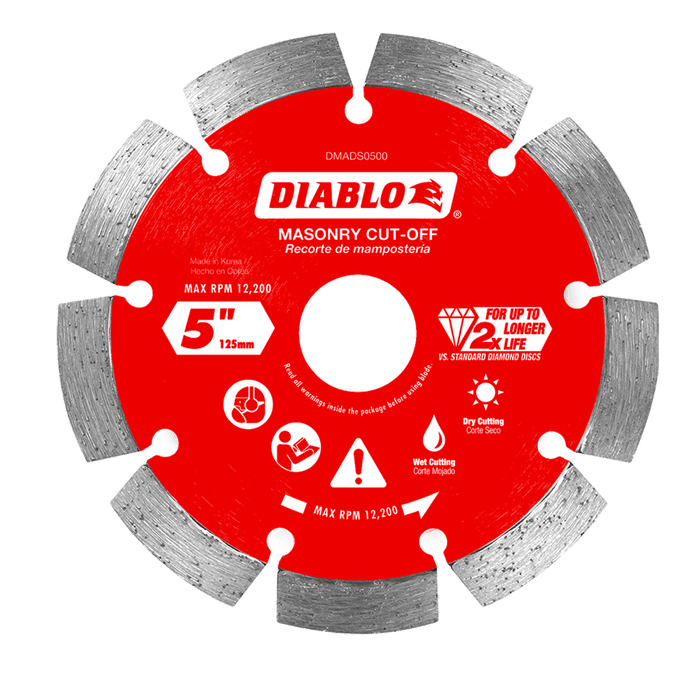

Diablo Diamond Segmented Masonry Cut-Off Blade
Diablo's segmented blade cuts concrete, concrete with rebar, brick and cinder block. Taller diamond segments sit on an ultra-durable bond, which Diablo rates for up to 2X longer life than its standard diamond cut-off discs. The diamond layout keeps fresh diamond exposed at speed, and a hardened disc body absorbs vibration.
Four sizes. The 4 in., 4-1/2 in. and 5 in. blades fit 7/8 in., 20 mm and 5/8 in. arbors and include 20 mm and 5/8 in. bushings. The 7 in. fits DM 7/8 in. and 5/8 in. arbors and includes a 5/8 in. bushing. Diablo lists the smaller sizes for angle grinders and the 7 in. for angle grinders and circular saws. Every size cuts wet or dry.
Not the tile blade. Diablo rates its continuous rim disc for tile, porcelain and stone. Use this segmented blade for concrete, brick, block and pipe, and see the continuous rim disc for tile.
Features and Common Uses
- Taller diamond segments on an ultra-durable bond, for up to 2X longer life than Diablo's standard diamond cut-off discs, by Diablo's rating
- Diamond layout keeps diamond exposed for steady cutting at high speed
- Hardened disc body absorbs vibration and resists impact in hard materials
- Cuts wet or dry
- 4 in. to 5 in. sizes include 20 mm and 5/8 in. bushings; the 7 in. includes a 5/8 in. bushing
- Maximum speed 15,250 RPM at 4 in. down to 8,450 RPM at 7 in.
Commonly used for:
- Concrete, including concrete with rebar
- Brick and cinder block
- Marble, granite and pipe
Specifications
| Size | Model | Arbor | Bushings included | Kerf | Max RPM |
|---|---|---|---|---|---|
| 4 in. | DMADS0400 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 2.2 mm | 15,250 |
| 4-1/2 in. | DMADS0450 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 2.2 mm | 13,280 |
| 5 in. | DMADS0500 | 7/8 in., 20 mm, 5/8 in. | 20 mm, 5/8 in. | 2.2 mm | 12,200 |
| 7 in. | DMADS0700 | DM 7/8 in., 5/8 in. | 5/8 in. | 2.4 mm | 8,450 |
Arbor, kerf and maximum speed are from Diablo's product pages, one page per size. Match the arbor or bushing to your tool, and never run a blade above its maximum RPM. Source: Diablo segmented blade product pages (diablotools.com).
Frequently Asked Questions
Can I cut wet?
Yes. Diablo rates every size of this blade for wet and dry cutting.
Segmented or turbo?
The turbo blade adds SPEED-Edge slots and 60% taller segments. Diablo's turbo pages for the 4 in. to 6 in. sizes claim up to 30% faster cuts and up to 4X longer life, against up to 2X longer life for this blade. See the turbo blade.
Does it cut concrete with rebar?
Yes. Diablo lists concrete with rebar among the materials, along with block, brick, marble, granite and pipe.
What arbor does the 7 in. blade use?
Diablo lists DM 7/8 in. and 5/8 in. arbors for the 7 in. blade and includes one 5/8 in. bushing. Check the arbor on your tool before you order.
