Diablo Diamond Rim Cup Wheel for Masonry
*فقط قیمتگذاری آنلاین
Diablo Diamond Rim Cup Wheel for Masonry
Diablo's diamond cup wheel grinds concrete and masonry. L-shaped diamond segments leave a clean, smooth finish and avoid gouging and swirl marks, and extra-wide slots pull dust out of the cut. Diablo says it removes material up to 3X faster than standard diamond cup wheels.
Two sizes for angle grinders, 4-1/2 in. and 7 in. Diablo lists the wheel for concrete, stone, natural stone, granite, mortar, brick and block.
Dry grinding, 5/8 in.-11 thread. The wheel threads straight onto the grinder spindle, so check your spindle thread before you order.
Features and Common Uses
- L-shaped diamond segments for a clean, smooth finish with fast grinding action and long wheel life
- Extra-wide slots for efficient dust extraction
- Up to 3X faster material removal than standard diamond cup wheels, by Diablo's rating
- Diamond layout keeps diamond exposed for steady grinding on concrete
- Dry grinding, 5/8 in.-11 threaded arbor
Commonly used for:
- Grinding and levelling concrete
- Smoothing stone, natural stone and granite
- Removing mortar from brick and block
Specifications
| Size | Model | Arbor | Max RPM |
|---|---|---|---|

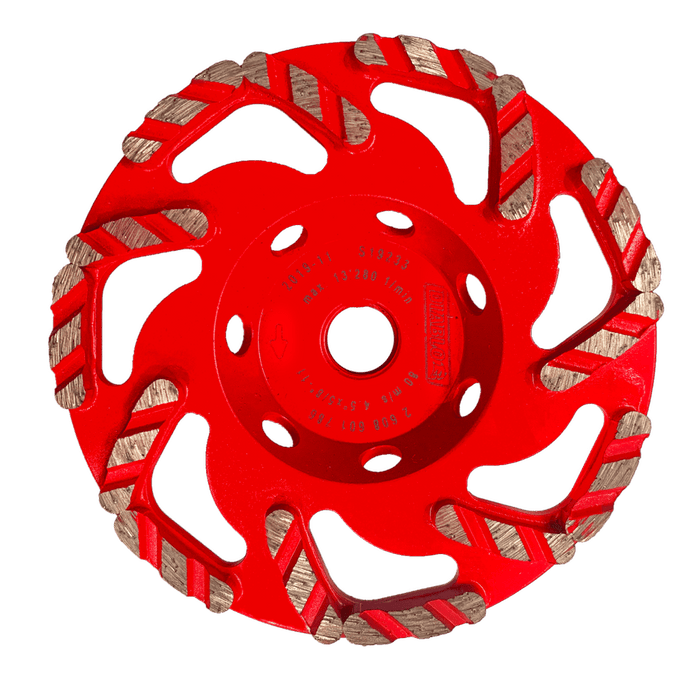

| 4-1/2 in. | DMACW0450 | 5/8 in.-11 thread | 13,280 |

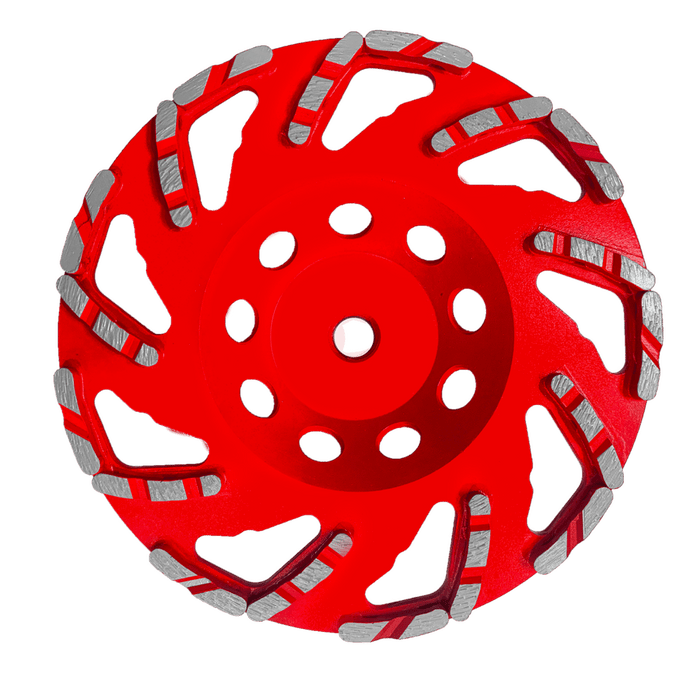

| 7 in. | DMACW0700 | 5/8 in.-11 thread | 8,450 |
Arbor and maximum speed are from Diablo's product pages, one page per size. Never run a wheel above its maximum RPM. Source: Diablo diamond cup wheel product pages (diablotools.com).
Frequently Asked Questions
Can I grind wet?
No. Diablo lists this cup wheel for dry grinding.
What thread does it need?
A 5/8 in.-11 thread. There is no bushing, so a grinder with a different spindle thread will not take it.
Cup wheel or cut-off disc?
A cup wheel grinds a surface. To cut through concrete, brick or block, use a segmented blade.
Which size do I need?
Match the grinder. The 4-1/2 in. wheel is rated to 13,280 RPM and the 7 in. wheel to 8,450 RPM, so check the grinder's no-load speed against the rating.
