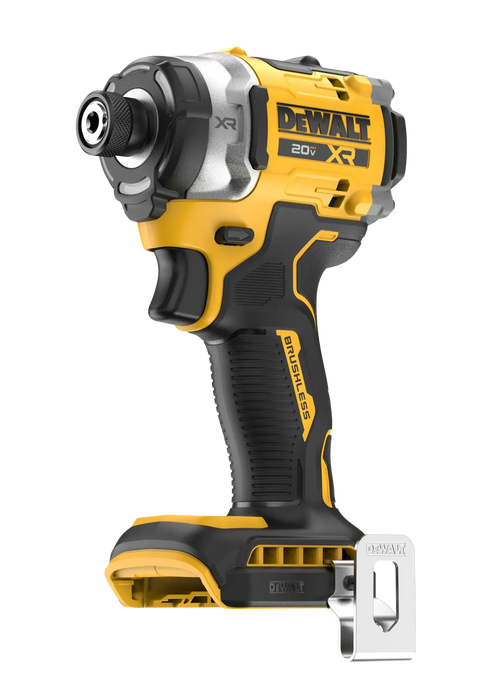

DeWalt 20V MAX XR High Torque 1/4 in. Impact Driver - Tool Only
The DeWalt DCF860B is the high-torque model in DeWalt's 20V MAX XR impact driver line, built for lag bolts, structural screws and other heavy fastening that outpaces a standard impact driver. It delivers up to 2,500 in-lbs of max torque and 0-3,800 RPM across three speed settings, with a 1/4 in. quick-connect hex chuck and a 9-LED ring light around the chuck for shadow-free visibility.
Bare tool only. No battery or charger is included. It runs on any DeWalt 20V MAX battery.
Features and Common Uses
- Brushless motor delivers up to 2,500 in-lbs of max torque, the highest in DeWalt's 20V MAX impact driver line, and up to 4,500 impacts per minute
- Three speed settings from 0 to 3,800 RPM match speed and torque to the fastener and material
- 9 built-in LEDs ring the chuck for shadow-free lighting, with a 20-minute work light setting
- 1/4 in. quick-connect hex chuck accepts standard impact-rated bits and sockets with no sleeve to retract
Commonly used for:
- Driving lag bolts and large structural screws
- Heavy framing and deck fastening where a standard impact driver runs out of torque
- General fastening on job sites needing a single high-output driver
Specifications
| Brand | DeWalt |
|---|---|
| Model Number | DCF860B |
| Series | 20V MAX XR, High Torque |
| Chuck | 1/4 in. quick-connect hex |
| Max Torque | 2,500 in-lbs |
| No-Load Speed | 0-3,800 RPM, 3-speed |
| Impact Rate | up to 4,500 IPM |
| Motor | Brushless |
| Weight | about 2.4 lb, bare tool |
| Length | about 4.8 in. |
| Work Light | 9-LED ring light, 20-minute setting |
| Battery | 20V MAX, sold separately |
Torque, speed and chuck figures are DeWalt's published specifications for the DCF860 platform; weight, length and impact rate are not listed on DeWalt's own product page and are carried from a secondary retailer reprint of the spec sheet, flagged separately from the manufacturer-sourced figures above. Source: DeWalt DCF860B Product Page (dewalt.com).
Frequently Asked Questions
Does this come with a battery?
No. This is the bare tool (DCF860B). It runs on any DeWalt 20V MAX battery; battery and charger are sold separately.
How does this compare to the standard DCF845?
It's the high-torque model: 2,500 in-lbs versus 1,825 in-lbs on the DCF845, and a 9-LED ring light instead of a single 3-LED strip. Choose this one for lag bolts and heavier fastening.
What bits does it take?
Standard 1/4 in. hex impact-rated bits and sockets, held by the quick-connect chuck with no sleeve to retract.
What's in the box?
The impact driver and a belt hook. No battery or charger.
