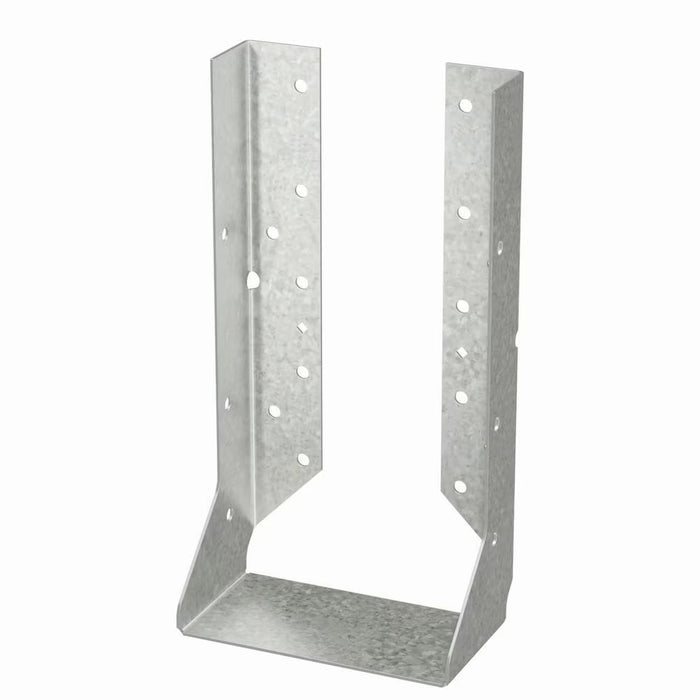

4" x 12" Heavy Concealed-Flange Face-Mount Joist Hanger - HUCQ412-SDS

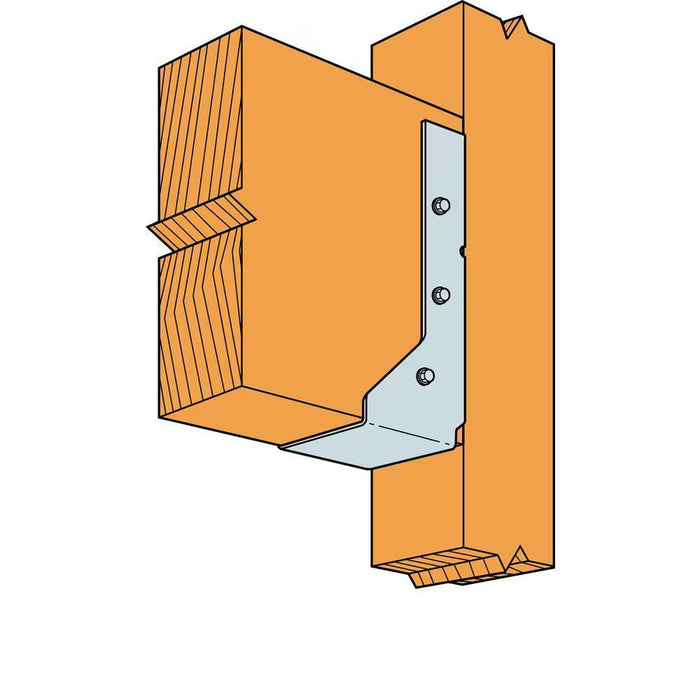

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.

Note: Face Mount Hangers for Solid Sawn Lumber

• Concealed flanges provide cleaner lines for exposed conditions
• HUCQ-series hangers are tested, load rated and code compliant
• Strong-Drive SDS Heavy-Duty Connector screws are included
• Fire-resistant F (flame) and T (temperature) rated in Intertek Design No. SST/WPCF 120-01.
