Arrow - 1/8" x 1/2" Long Steel Pop Rivets (15-Pack) - 04RLS18
*Online Pricing Only

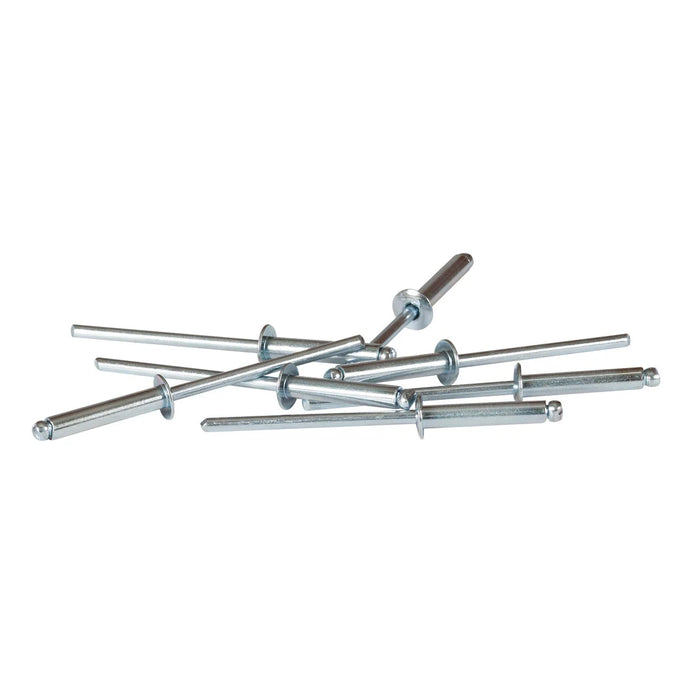

Arrow RLS1/8 Long Steel Pop Rivets, 15-Pack
The Arrow RLS1/8 is a long steel blind (pop) rivet, 1/8 in. diameter with a 1/2 in. body length and a 3/16 in. grip range, built for a thicker material stack than Arrow's short (RSS1/8) steel rivet grips. The steel body gives it higher shear and tensile strength than an aluminum rivet of the same size, for steel-to-steel joins.

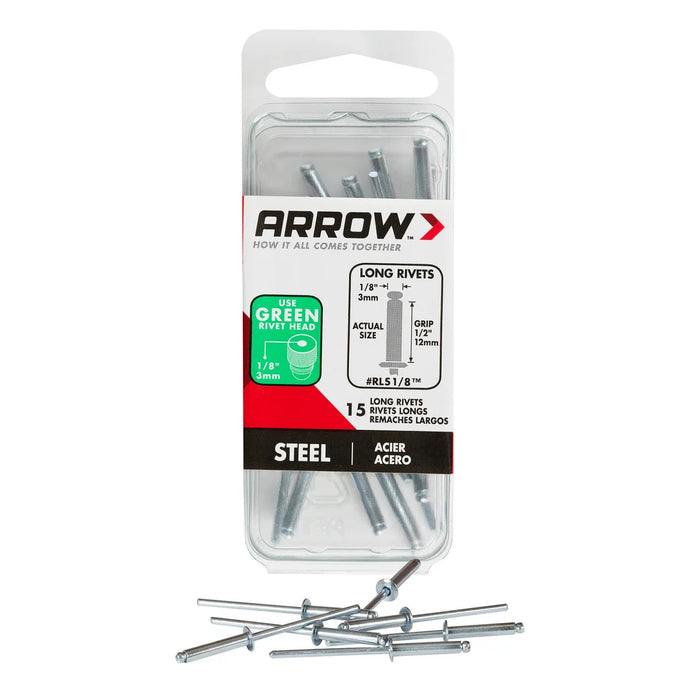

This is the plain 15-count retail pack. It sets with any standard hand or pneumatic rivet tool built for 1/8 in. rivets, including Arrow's own RH200S, RHT300 and RL100K.
Features and Common Uses
- Steel body rivet, 1/8 in. diameter x 1/2 in. body length, 3/16 in. grip range
- Higher shear and tensile strength than an aluminum rivet of the same size
- "Long" grip length suits a thicker material stack than the short (RSS1/8) version
- Sets with any standard 1/8 in.-capacity rivet tool
Commonly used for:
- Joining thicker steel sheet stacks, steel to steel
- Automotive body and trim repair
- Light-gauge metal fabrication and duct work
Specifications
| Brand | Arrow |
|---|---|
| Manufacturer Part No. | RLS1/8 |
| Diameter | 1/8 in. |
| Body Length | 1/2 in. |
| Grip Range | 3/16 in. |
| Material | Steel |
| Pack Quantity | 15 rivets |
Diameter, length, grip range and material are as published on Arrow Tool Group's own product page for this catalog number. Shear and tensile strength figures come from the higher-count RLS1/8IP trade packaging of the identical rivet, since Arrow does not republish performance figures on the 15-count retail listing. Source: Arrow RLS1/8 Long Steel Pop Rivets, 15-Pack (arrowtoolgroup.com).
Frequently Asked Questions
How is this different from the short steel rivet (RSS1/8)?
Same 1/8 in. diameter and steel material, but a longer 1/2 in. body and 3/16 in. grip range, for a thicker material stack than the short version's 1/8 in. grip.
What tool do I need to set these?
Any rivet tool rated for 1/8 in. diameter rivets, including Arrow's RH200S, RHT300 or RL100K hand tools.
Steel or aluminum - which do I need?
Steel for steel-to-steel joins where strength matters. Aluminum rivets are lighter and easier to set but weaker.
