Diablo DBD070250B01F 7 in. x 1/4 in. x 5/8-11 Metal Grinding Disc
*Online Pricing Only
Diablo DBD070250B01F 7 in. x 1/4 in. x 5/8-11 Metal Grinding Disc

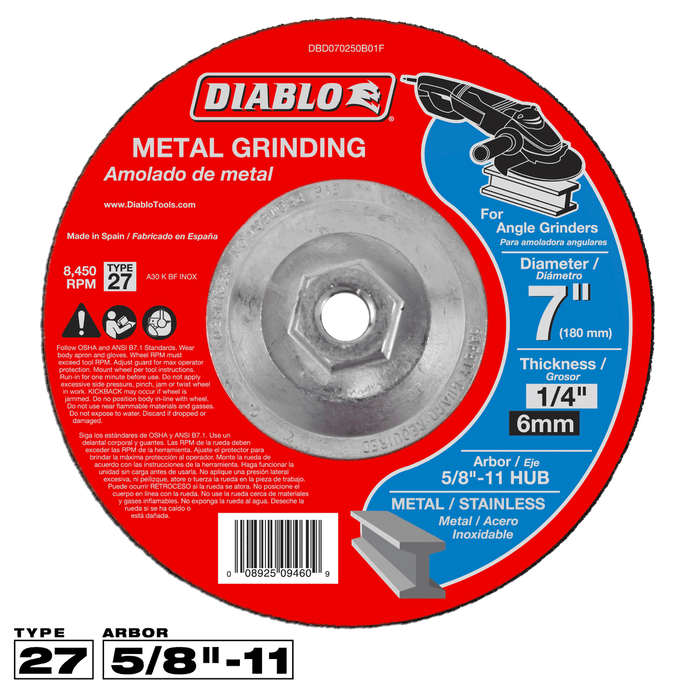

The Diablo DBD070250B01F is a 7 in. Type 27 hub metal grinding disc, 1/4 in. thick, with a 5/8 in.-11 threaded arbor. It uses a premium aluminum oxide blend for metal grinding on a 7 in. angle grinder.
It is a threaded-hub disc, so the grinder needs a 5/8 in.-11 spindle. It is for metal only and must not run above 8,450 RPM.
Features and Common Uses
- Premium aluminum oxide blend
- Depressed center (Type 27) with threaded hub
- Reinforced for hand-held use
Commonly used for:
- Heavy weld grinding on plate and structural steel
- Removing material from rebar, bar and angle iron
Specifications
| Brand | Diablo |
|---|---|
| Part number | DBD070250B01F |
| Diameter | 7 in. |
| Thickness | 1/4 in. |
| Arbor | 5/8 in.-11 |
| Hub type | 27 (depressed center, hub) |
| Maximum speed | 8,450 RPM |
| Abrasive | Aluminum oxide blend |
| Pack quantity | 1 |
| Tool | Angle grinder |
Specifications are from Diablo's product page for DBD070250B01F, the same disc under Diablo's U.S. item number. Griff stocks it under the Canadian code in the SKU. The store SKU DBD07025OBO1F has letters O in place of zeros; Diablo's number is DBD070250B01F. Source: Diablo DBD070250B01F product page.
Frequently Asked Questions
What spindle does it fit?
A 5/8 in.-11 threaded spindle.
What does it grind?
Metal, including rebar, cast iron, steel bar, angle iron and tubing, strut and mild steel.
What is the top speed?
8,450 RPM.
