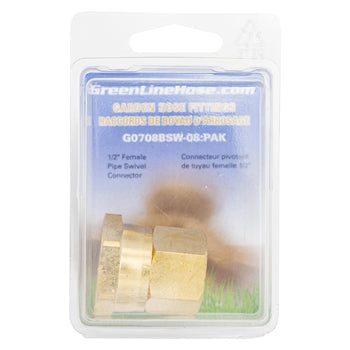

Green Line G0708BSW-08 brass swivel female hose x female NPT adapter, 1/2" NPT

Green Line Brass Swivel Female Hose x Female Pipe (NPT) Adapter

by Green Line Hose & Fittings
$7.02 - $7.56
$7.02
$7.02 - $7.56
$7.02

*Online Pricing Only

Availability:
Only 4 left!
Availability:
Only 4 left!
SKU G0708BSW-08:PAK
Pipe Size: 1/2"

Green Line Brass Swivel Female Hose x Female Pipe (NPT) Adapter

Brass adapter that joins a garden hose (swivel female garden hose thread (fght)) to female pipe thread (npt) pipe. The hose nut swivels, so it threads on without twisting the pipe side or the hose. Lead-free brass, rated 150 psi working pressure.

Features and Common Uses
  • Swivel female garden hose thread (FGHT) on one end, Female pipe thread (NPT) on the other
  • Lead-free brass body

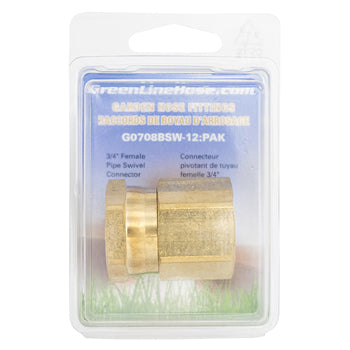

  • Available in 1/2" and 3/4" NPT

Commonly used for:

  • Connecting threaded pipe to a hose bib without turning the pipe
  • Fixed pump and tank connections
Specifications
Product Specifications
Hose side Swivel female garden hose thread (FGHT)
Pipe side Female pipe thread (NPT), 1/2" or 3/4"
Material Lead-free brass
Working pressure 150 psi
Weight 0.16 lb (1/2"), 0.22 lb (3/4")
Packaging Retail packaged, sold individually

Specifications from Green Line Hose & Fittings, part G0708BSW-08:PAK, G0708BSW-12:PAK: Source: Green Line product page.

How to Install
  1. Wrap the male NPT thread clockwise with 3 to 4 turns of PTFE tape or use pipe dope. Hose threads seal on a washer and get no tape.
  2. Thread the NPT side hand-tight, then turn 1 to 2 more turns with a wrench. Do not overtighten brass.
  3. Make sure a hose washer sits in every female hose-thread end, then hand-tighten the hose connection and test for leaks.

Specifications from Green Line Hose & Fittings, part G0708BSW-08:PAK, G0708BSW-12:PAK: Source: Green Line product page.

Frequently Asked Questions
Is garden hose thread the same as pipe thread?

No. Garden hose thread (GHT, 3/4" 11.5 TPI) is a straight thread that seals on a washer. NPT pipe thread is tapered and seals on the thread itself. They do not interchange, which is what this adapter solves.
