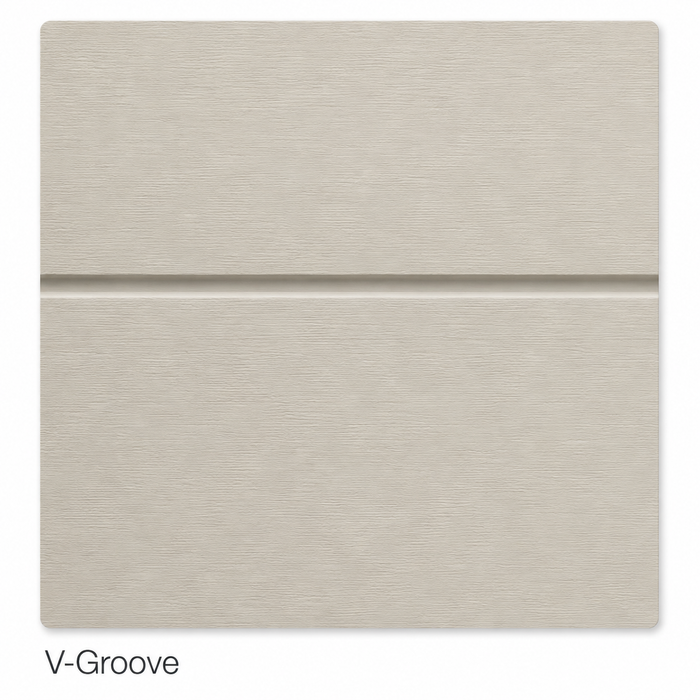

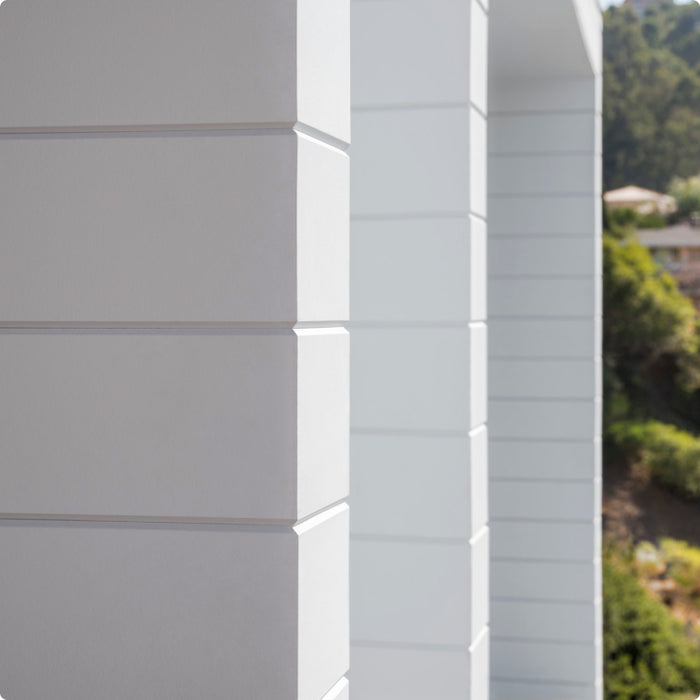

James Hardie Artisan V-Groove Fiber Cement Lap Siding, 8.25 in. x 12 ft., Primed for Paint
Special Order - 48 Hours for Delivery or Pick Up
James Hardie Artisan V-Groove Fiber Cement Lap Siding, 8.25 in. x 12 ft., Primed for Paint
The Artisan V-Groove is James Hardie's thick-profile fiber cement board from the Artisan Architectural Collection, milled with a V-groove reveal and James Hardie's lock joint system for a fast, concealed-fastener install. It's 8.25 in. wide, 5/8 in. thick and runs 7 in. of exposure per board, noticeably thicker than standard lap siding, which is what gives the deep shadow lines the Artisan line is known for.
It installs vertically, horizontally as a lap siding, or as a soffit board, and comes primed and ready for field paint. Boards ship 12 ft. long, 126 per lift.
Primed for Paint only. This profile is not available in a factory ColorPlus finish. Contact us to request a ColorPlus quote if you'd like a factory-finished color option.
Features and Common Uses
- Extra-thick 5/8 in. profile with a milled V-groove reveal, for a deeper shadow line than standard lap siding
- Lock joint system conceals the fastener line of the course below for a cleaner reveal and a faster install
- Installs vertically, horizontally, or as a soffit board
- Noncombustible fiber cement resists moisture damage and holds no appeal for pests like woodpeckers or termites
- Primed and ready for field paint in the color of your choice
Commonly used for:
- Accent walls, gables and feature elevations where a deeper shadow line matters
- Vertical board-and-batten style facades
- Covered porch and eave soffits
- Full elevations on new builds and re-sides where the standard Artisan Lap profile isn't the look
Specifications
| Brand | James Hardie |
|---|---|
| Product Line | Artisan Architectural Collection |
| Profile | V-Groove, Lock Joint System |
| Material | Fiber cement, ASTM C1186 Grade II Type A |
| Thickness | 5/8 in. |
| Width | 8.25 in. |
| Length | 12 ft. |
| Exposure | 7 in. |
| Coverage per board | approx. 7 sq. ft. |
| Finish | Primed for paint |
| Fire Rating | Noncombustible, ASTM E136 Class A |
| Pieces per Lift | 126 |
Wind and fastening performance is engineered per James Hardie's Artisan Lock Joint technical data sheet and varies by stud spacing, fastener type and building height/exposure category. Tested configurations run up to 180+ mph design wind speed. Confirm the exact fastening schedule for your building's framing and exposure before install. Source: James Hardie Artisan Siding with Lock Joint Technical Data Sheet (PDF).
How to Install
- Maintain at least 6 in. of clearance from grade and follow James Hardie's flashing details at rooflines, decks and penetrations.
- Cut outdoors with a Hardie-approved blade and dust collection, or score and snap for straight runs.
- Blind-nail through the lock joint with a No. 11 ga. x 1-1/4 in. corrosion-resistant roofing nail at 16 in. o.c. framing, or face-nail with a 0.092 in. x 2-1/2 in. siding nail at 24 in. o.c.
- Prime all field cuts and fastener heads, and caulk joints per the manufacturer's paint requirements before finish coating.
Electroplated galvanized fasteners are not approved for this product. Use hot-dip galvanized or stainless steel only.
Frequently Asked Questions
Can this be installed horizontally like regular lap siding?
Yes. Artisan V-Groove is rated for vertical, horizontal or soffit installation with the same lock joint system.
Does it come pre-finished?
No, it's primed for paint only on this supplier's price list. It needs a field-applied topcoat after install.
What nails do I need?
A No. 11 ga. x 1-1/4 in. roofing nail for blind-nailing at 16 in. o.c. framing, or a 0.092 in. x 2-1/2 in. siding nail for face-nailing at 24 in. o.c. Always corrosion-resistant, never electroplated. Full fastening schedule: James Hardie Artisan Lock Joint Technical Data Sheet (PDF).
How much wall does one board cover?
About 7 sq. ft. per 12 ft. board at the 7 in. exposure this profile is milled for.
How many boards come on a lift?
126 pieces per lift from this supplier.
