Onward 3 in. Non-Adjustable Integrated Surface Spring Hinge, White, 2 Pack
*Online Pricing Only

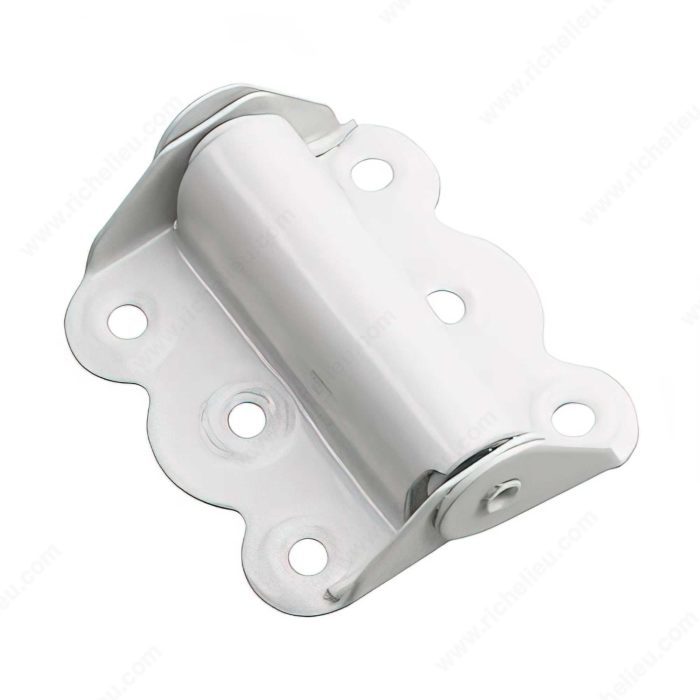

Onward 3 in. Integrated Surface Spring Hinge, White
A surface spring hinge closes a door on its own. The spring lives inside the hinge barrel rather than in a separate closer, so there is nothing mounted across the top of the door and nothing to catch a head on.
This is the non-adjustable integrated pattern in white, 3 in. high with a 1/4 in. radius, two hinges to a pack. Non-adjustable means the spring tension is set at the factory, which is the right choice on a light door where a tunable closer is more fuss than it is worth.
It suits lightweight gates, pool gates and storm doors. On a heavy or wind-loaded door, use a proper closer instead, because a spring hinge will not hold it.
Specifications
| Specification | Value |
|---|---|
| Type | Non-adjustable integrated surface spring hinge |
| Height | 3 in. |
| Radius | 1/4 in. |
| Material | Steel |
| Finish | White |
| Pin | Non-removable |
| Pack quantity | 2 hinges |
| Adjustable | No, factory-set spring |
| Model | 44WR |
How to install
- Mount both hinges on the face of the door and frame. This is a surface hinge, so no mortising.
- Keep both hinges in line with each other. A hinge out of alignment binds and the spring fights it.
- Fit the pair evenly spaced, one near the top and one near the bottom, rather than close together.
- Check the door closes and latches on its own before you walk away. If it stops short, the problem is usually alignment or a binding latch, not the spring.
Questions
Can I adjust the closing speed?
No. This is the non-adjustable pattern and the spring is set at the factory. Onward makes an adjustable surface spring hinge if you need to tune it.
How many are in a pack?
Two hinges.
Will it close a heavy door?
No. It is made for lightweight gates, pool gates and storm doors. A heavy or wind-loaded door needs a door closer.
Do I need to mortise the door?
No. It is a surface hinge and mounts on the face of the door and frame.
Can I take the pin out?
No, the pin is non-removable. That is deliberate, since it stops the door being lifted off from outside.
