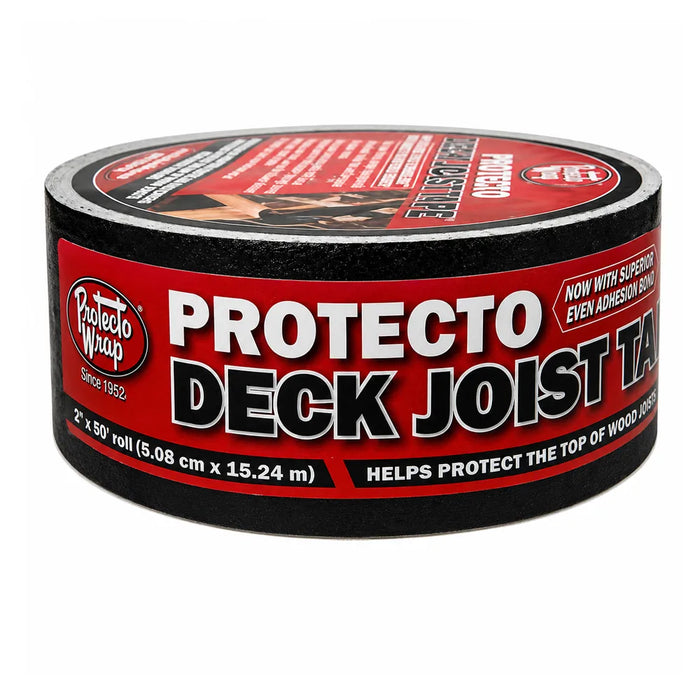

Protecto Wrap Deck Joist Tape - 2" x 50'
*Online Pricing Only
Protecto Wrap Deck Joist Tape - 2" x 50'
Deck Joist Tape is Protecto Wrap's self-adhering flashing tape for the tops of deck ledger boards and joists. Its Super Stick Technology butyl adhesive grips damp or pressure-treated lumber without a primer coat, and it forms a moisture barrier where deck screws and joist hangers penetrate the wood.
Peel back the release liner and press the tape onto the joist, smoothing out wrinkles and air bubbles with a roller. Keep a minimum 2 in. side lap and 4 in. end lap where two runs meet.
This is the 2 in. wide roll, sized for the top of a standard joist. Wider ledger boards, beams or doubled joists need Protecto Wrap's 4 in., 6 in. or 9 in. rolls instead.
Features and Common Uses
- Super Stick Technology butyl adhesive grips damp or pressure-treated lumber, no primer needed
- Walk-on, slip-resistant black facer film
- Seals around properly installed fasteners to keep moisture out
- Stays flexible down to -20 degrees F without cracking or delaminating
- Class A fire rating (ASTM E84)
- Compatible with pressure-treated lumber, composite, PVC and softwood decking
Commonly used for:
- Flashing deck ledger boards where they attach to the house
- Waterproofing the tops of deck joists before decking goes down
- Creating a non-corrosive barrier between treated lumber and metal joist hangers
Specifications
| SKU | PSSDJ-2 (Protecto Wrap Mfr# 84490250SW) |
|---|---|
| Brand | Protecto Wrap |
| Material | Synthetic butyl adhesive, black poly facer film |
| Width | 2 in. |
| Length | 50 ft. |
| Thickness | 20 mil |
| Installation Temperature | -20 to 125 degrees F (-28 to 52 degrees C) |
| Service Temperature | -45 to 240 degrees F (-42 to 116 degrees C) |
| Fire Rating | Class A (ASTM E84) |
| Nail Sealability | Pass |
Surfaces must be clean and free of dust, grease or other loose material before applying. The adhesive tolerates damp lumber but not standing water or contamination.

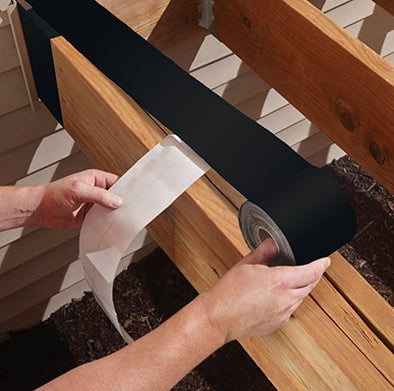

How to Install
- Make sure the top of the joist or ledger board is clean and free of dust and debris.
- Center the tape on the joist so it covers evenly on both sides.
- Remove 3 to 6 inches of release liner at a time and press the tape down as you go.
- Roll the full length smooth to work out wrinkles, creases or air bubbles.
- Where two lengths meet, keep a minimum 2 in. side lap and 4 in. end lap.
Wider ledger boards, beams or doubled joists need one of Protecto Wrap's 4 in., 6 in. or 9 in. rolls instead of this 2 in. roll.
Frequently Asked Questions
Do I need a primer first?
No. Super Stick Technology adheres directly to damp or pressure-treated lumber without a primer coat.
Can I install it in cold weather?
Yes, down to -20 degrees F (-28 degrees C).
Does it work with metal joist hangers?
Yes, it forms a non-corrosive barrier between treated lumber and metal hangers.
Is it compatible with composite decking?
Yes, it's compatible with pressure-treated lumber, composite, PVC and softwood decking.
How much overlap do I need where two pieces meet?
A minimum 2 in. side lap and 4 in. end lap.
What size do I need for my joists?
Match the tape width to the top of your joist or ledger board. This is the 2 in. roll; wider joists, ledgers or beams need the 4 in., 6 in. or 9 in. rolls.
