Simpson Strong-Tie CJT6ZS Concealed Joist Tie with Short Pin, ZMAX
*Online Pricing Only
CJT6ZS Concealed Joist Tie, ZMAX

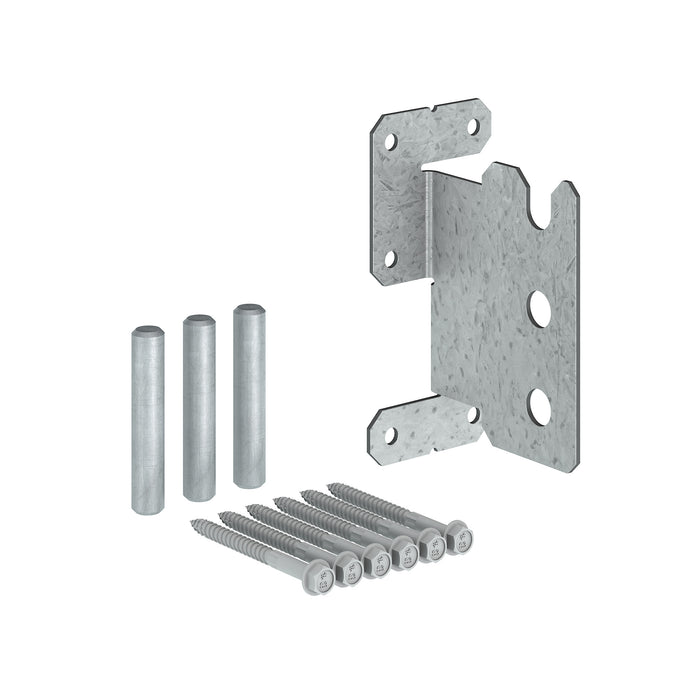

The CJT6ZS is a 12-gauge concealed joist tie for flush, hidden beam-to-beam connections. The tie screws to the supporting member, the beam end is routed and slides down over it, and dowels lock the beam in place. All dowels and screws come with it.
Install the beam perpendicular to the support and never rotate it after install. Simpson warns that twisting the beam from its far end can damage the connection without visible signs.
Features and Common Uses
- 12-gauge concealed tie with short pin
- Supplied with all dowels and screws
- ZMAX coating
- Carried member may slope up or down to 45 degrees with full table loads
Commonly used for:
- Exposed timber and glulam beams with no visible hardware
- Pergolas and outdoor timber framing
- Mass timber and heavy timber floors
Specifications
| Brand | Simpson Strong-Tie |
|---|---|
| Model | CJT6ZS |
| Gauge | 12 ga. |
| Fasteners | Dowels and screws supplied; hex-head driver required |
| Finish | ZMAX galvanized |
Specifications are from Simpson's product data for the CJT series. Loads depend on beam size and species; confirm them from the catalogue table. Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, p. 134 (PDF).

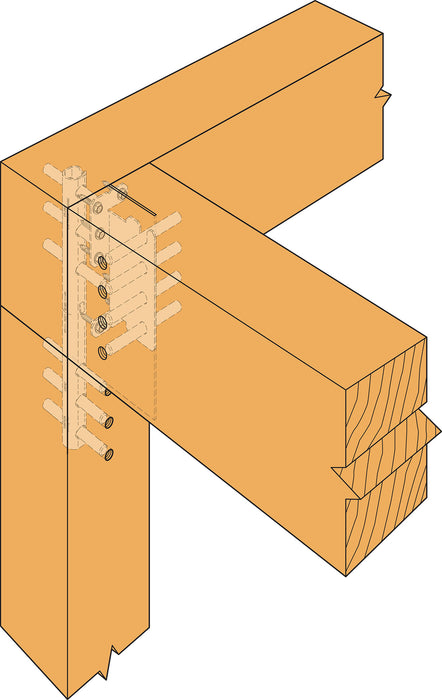

How to Install
- Rout the beam end so the screw heads sit flush.
- Screw the tie to the supporting member with the supplied screws.
- Slide the beam down over the tie and drive the supplied dowels.
- Install the beam perpendicular to the support and do not rotate it afterward.
Full installation notes and load tables: Source: Simpson Strong-Tie Wood Construction Connectors Catalog C-C-2026, p. 134 (PDF).
Frequently Asked Questions
Does it come with fasteners?
Yes. The CJT is supplied with all dowels and screws; the screws need a hex-head driver.
Can the beam be sloped?
Yes, up or down to 45 degrees at full table loads, per Simpson.
