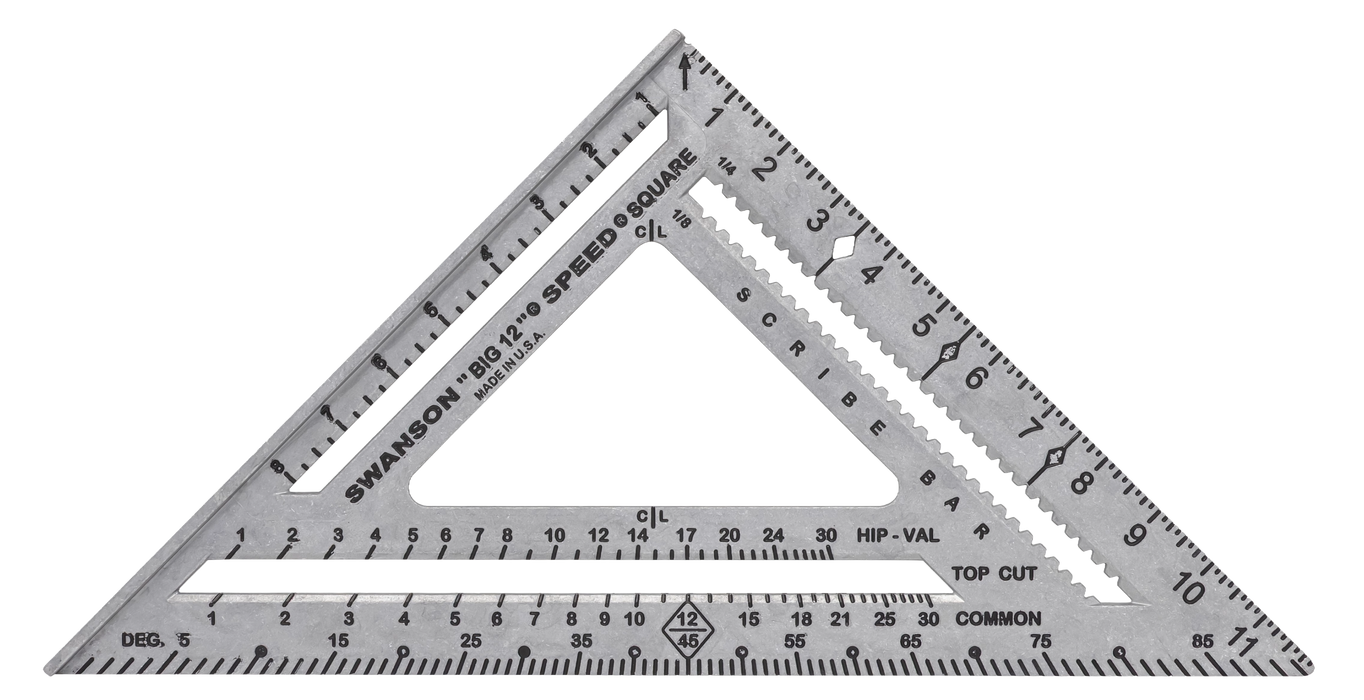

Swanson Tool S0107 Big 12 Speed Square

Swanson Big 12 Speed Square with Layout Bar S0107

by Swanson
$45.75 - $45.75
$45.75
$45.75 - $45.75
$45.75

*Online Pricing Only

Availability:
In stock
SKU S0107

Swanson Big 12 Speed Square with Layout Bar S0107

The Big 12 Speed Square is a 12 in. layout square in die-cast aluminum with CNC-machined 45 and 90 degree angles. The layout bar with adjustable stop pegs repeats cuts and finds out-of-square corners.

Swanson sells this square in several packagings. This listing is the Layout Bar version, made in the U.S.A.

Features and Common Uses
  • Heavy-gauge die-cast aluminum
  • CNC-machined 45 and 90 degree angles
  • Layout bar with adjustable stop pegs
  • Common, hip, valley and jack rafter scales
  • Diamond cutout for rafter seat cuts
  • Black-filled markings

Commonly used for:

  • Framing large lumber
  • Stair stringers
  • Rafter cuts and full-sheet layouts
Specifications
Product Specifications
Brand Swanson
Model S0107
Size 12 in. (304.8 mm)
Material Die-cast aluminum alloy
Scales Inch, degree, common rafter, hip/valley, jack rafter
Weight 1.05 lb (tool)
Origin Made in the U.S.A.
Warranty 1-year limited

Specifications are from Swanson's product page. Source: Swanson Big 12 Speed Square S0107.

Frequently Asked Questions
What does the layout bar do?

Its adjustable stop pegs let you repeat a layout, and it can also find out-of-square corners.
